Advantech - ECU-1251D Industrial Communication Gateway

Supplier: Autech Control Group

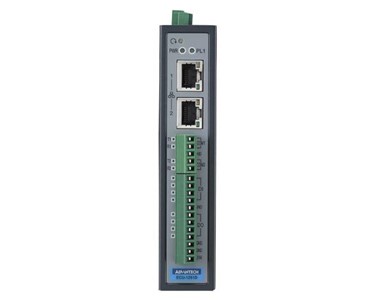

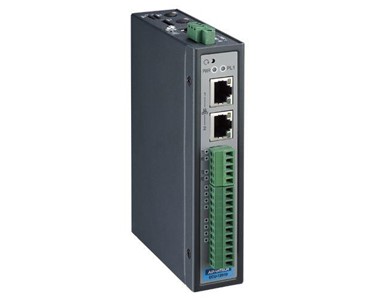

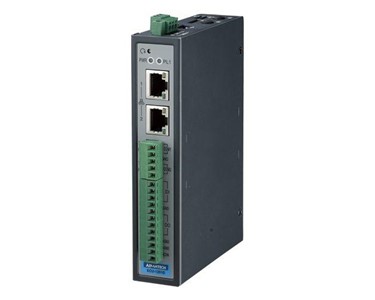

ECU-1251D Industrial Communication Gateway

The ECU-1251D is an industrial communication gateway designed for robust networking and facility monitoring, offering versatile connectivity and advanced data logging capabilities.

Wide operating temperature range and remote monitoring capabilities for industrial environments.

The ECU-1251D is a RISC-based industrial communication gateway built for facility monitoring, distributed solar power, smart factories and cloud-based applications, where comprehensive wireless and Ethernet communication are critical. It features a robust open platform with a TI Cortex A8 processor and dual 10/100 Ethernet ports, supporting a wide operating temperature range from -40 to 70°C.

Main Features

TI Cortex A8 600MHz CPU with 256MB DDR3L RAM
Onboard I/O: 4 Digital Inputs / 4 Digital Outputs
Support for web service for remote online monitoring
Firmware updates via SD card and online
Real-time data logger on SD card with database uplink (ODBC/FTP)
Dual SIM slots for communication redundancy
MQTT Client support for cloud communication
Wide temperature operation: -40 ~ 70°C
Supports 100+ PLC drivers

Specifications

Certification	CE, FCC
Mounting	Wall-Mount / DIN-Rail
Power Consumption	2.5 W @ 24 VDC
Power Supply	10 ~ 30 VDC
Memory	DDR3L 256 MB / 512 MB NAND Flash
Storage	1 x Micro-SD slot
Serial Ports	2 x RS232/RS485 (Isolation optional)
USB	1 x USB 2.0
Ethernet Ports	2 x 10/100 Base-T RJ-45
Wireless (Optional)	Mini-PCIe (WiFi/Cellular/4G via USB)
Digital Inputs	4 channels (Wet Contact, 0–4V Logic 0, 10–30V Logic 1, 2000 VDC Isolation)
Digital Outputs	4 channels (Open Collector, 10–30 VDC, 100 mA/channel, 2000 VDC Isolation)
Watchdog/RTC	Yes
Operating System	Linux Kernel 4.0
Configuration Tool	Advantech Edgelink Studio
Operating Temp.	-40 ~ 70 °C
Storage Temp.	-40 ~ 85 °C
Humidity	5 ~ 95% (non-condensing)

Supported Protocols & Drivers

IEC-60870-5-104
Modbus TCP/RTU
MQTT
FTP/HTTP/DHCP/TCP/IP
100+ PLC Drivers

Programming Support

Linux C, Restful API, Web service API
Event Manager

To contact Autech Control Group about Advantech ECU-1251D Industrial Communication Gateway use Get a quote.

Main Features

TI Cortex A8 600MHz CPU with 256MB DDR3L RAM
Onboard I/O: 4 Digital Inputs / 4 Digital Outputs
Support for web service for remote online monitoring
Firmware updates via SD card and online
Real-time data logger on SD card with database uplink (ODBC/FTP)
Dual SIM slots for communication redundancy
MQTT Client support for cloud communication
Wide temperature operation: -40 ~ 70°C
Supports 100+ PLC drivers

Specifications

Certification	CE, FCC
Mounting	Wall-Mount / DIN-Rail
Power Consumption	2.5 W @ 24 VDC
Power Supply	10 ~ 30 VDC
Memory	DDR3L 256 MB / 512 MB NAND Flash
Storage	1 x Micro-SD slot
Serial Ports	2 x RS232/RS485 (Isolation optional)
USB	1 x USB 2.0
Ethernet Ports	2 x 10/100 Base-T RJ-45
Wireless (Optional)	Mini-PCIe (WiFi/Cellular/4G via USB)
Digital Inputs	4 channels (Wet Contact, 0–4V Logic 0, 10–30V Logic 1, 2000 VDC Isolation)
Digital Outputs	4 channels (Open Collector, 10–30 VDC, 100 mA/channel, 2000 VDC Isolation)
Watchdog/RTC	Yes
Operating System	Linux Kernel 4.0
Configuration Tool	Advantech Edgelink Studio
Operating Temp.	-40 ~ 70 °C
Storage Temp.	-40 ~ 85 °C
Humidity	5 ~ 95% (non-condensing)

Supported Protocols & Drivers

IEC-60870-5-104
Modbus TCP/RTU
MQTT
FTP/HTTP/DHCP/TCP/IP
100+ PLC Drivers

Programming Support

Linux C, Restful API, Web service API
Event Manager

Read less...

To contact Autech Control Group about Advantech ECU-1251D Industrial Communication Gateway use Get a quote.
