Bucher Municipal Sport Refuse Side Loader ...

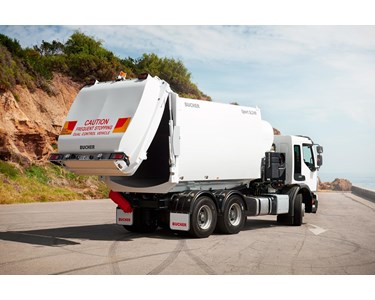

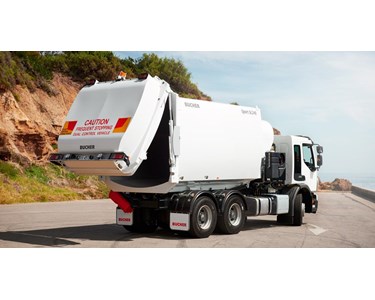

Bucher Municipal - Sport Refuse Side Loader Truck

Supplier: Bucher Municipal Australia

Sport Refuse Side Loader Truck

The Sport Side Loader is a high-performance refuse collection truck engineered to deliver the fastest and highest bin lifting capacity in Australia, specifically built to handle tough local conditions and diverse waste management needs.

Australia’s fastest and highest capacity bin lifter for refuse collection.

The Sport Side Loader is designed as a single-person operated refuse truck, offering unmatched speed and bin lifting performance for domestic waste, recyclables, and FOGO. Available in multiple body sizes (14m³, 20m³, 24m³, and 29m³), it maximises payload potential and adapts to specific waste stream volumes.

Performance

Fastest and highest bin lifting capacity in Australia.
Lifts up to 6 bins per minute, maximum lift capacity of 180kg.
Bin lifter cycle: 8-12 seconds.
Bin lifter reach: 3830mm – 4480mm (with Extend-A-Slide option for longest reach).
UG-6 Grab with reduced operational and maintenance costs.

Reliability

Constructed with durable Creusabro 8000 and Hardox steel to withstand harsh Australian conditions.
Enhanced subframe, body, and tailgate for increased strength and extended working life.
Designed for a 10+ year life expectancy.

Technology

Bucher iQ control system with 12" LCD touchscreen for streamlined operation and diagnostics.
Integrated cooling package maintains hydraulic oil at optimal temperatures, improves reliability, and supports biodegradable oil.
CANBus system with configurable settings, ergonomic controls, and dual tipping operation (touchscreen & joystick).
Built-in warning system, on-screen bin counter, hour meter, and split-screen camera support.

Safety

Bin Lifter Collision Avoidance and Automatic Emergency Braking.
Front and Rear Weighing, Payload, and Bin Weighing systems with customisable CCTV.
Integrated camera system enhances operator awareness (pedestrians/obstacles).
Automatic tailgate lock, bin lifter auto-retract above 4km/h, emergency stop, safety check valves, and anti-burst hydraulic valves.

Key Specifications

Body Sizes	14m³, 20m³, 24m³, 29m³
Payload	4,000–10,000kg
Bin Lifting Capacity	125–180kg
Hopper Capacity	1.3m³
Bin Lifter Cycle	8–12 seconds
Bin Lifter Reach	3,830mm–4,480mm

Main Features

One Grab suits all 2-wheeled MGBs; narrow arm for bins placed together.
Automatic grease system and centralised lubrication points.
Lightweight hydraulic oil tank and cooler are bin-lifter mounted.
Spill flaps fitted on bin lifter to prevent waste spillage during operation.
Dual body tipping cylinders with watertight tailgate seal.
Comprehensive safety integrations with all Australian OH&S requirements met.

Optional Features

Extend-A-Slide for extended bin lifter reach (up to 4,480mm).
Upgraded weighing and split-screen integrated camera systems.
Extended warranty and tailored maintenance packages.

Service & Support

Standard package includes technical and spare parts manual.
Automatic greasing, thorough diagnostic and operator training support.

To contact Bucher Municipal Australia about Bucher Municipal Sport Refuse Side Loader Truck use Get a quote.

Performance

Fastest and highest bin lifting capacity in Australia.
Lifts up to 6 bins per minute, maximum lift capacity of 180kg.
Bin lifter cycle: 8-12 seconds.
Bin lifter reach: 3830mm – 4480mm (with Extend-A-Slide option for longest reach).
UG-6 Grab with reduced operational and maintenance costs.

Reliability

Constructed with durable Creusabro 8000 and Hardox steel to withstand harsh Australian conditions.
Enhanced subframe, body, and tailgate for increased strength and extended working life.
Designed for a 10+ year life expectancy.

Technology

Bucher iQ control system with 12" LCD touchscreen for streamlined operation and diagnostics.
Integrated cooling package maintains hydraulic oil at optimal temperatures, improves reliability, and supports biodegradable oil.
CANBus system with configurable settings, ergonomic controls, and dual tipping operation (touchscreen & joystick).
Built-in warning system, on-screen bin counter, hour meter, and split-screen camera support.

Safety

Bin Lifter Collision Avoidance and Automatic Emergency Braking.
Front and Rear Weighing, Payload, and Bin Weighing systems with customisable CCTV.
Integrated camera system enhances operator awareness (pedestrians/obstacles).
Automatic tailgate lock, bin lifter auto-retract above 4km/h, emergency stop, safety check valves, and anti-burst hydraulic valves.

Key Specifications

Body Sizes	14m³, 20m³, 24m³, 29m³
Payload	4,000–10,000kg
Bin Lifting Capacity	125–180kg
Hopper Capacity	1.3m³
Bin Lifter Cycle	8–12 seconds
Bin Lifter Reach	3,830mm–4,480mm

Main Features

One Grab suits all 2-wheeled MGBs; narrow arm for bins placed together.
Automatic grease system and centralised lubrication points.
Lightweight hydraulic oil tank and cooler are bin-lifter mounted.
Spill flaps fitted on bin lifter to prevent waste spillage during operation.
Dual body tipping cylinders with watertight tailgate seal.
Comprehensive safety integrations with all Australian OH&S requirements met.

Optional Features

Extend-A-Slide for extended bin lifter reach (up to 4,480mm).
Upgraded weighing and split-screen integrated camera systems.
Extended warranty and tailored maintenance packages.

Service & Support

Standard package includes technical and spare parts manual.
Automatic greasing, thorough diagnostic and operator training support.
