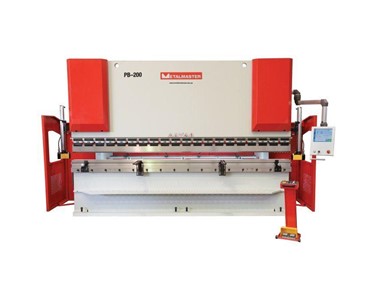

CNC Pressbrake Touch Screen - Hydraulic - PB-200B

Supplier: Hare & Forbes Machinery House

Pressbrake Touch Screen CNC - Hydraulic - PB-200B | 200T x 4000mm - Includes Laser Safety Guarding | CYBELEC Touch Draw control 2-Axis with Servo driven Ballscrew Backgauge

Receive 1-3 days from order

Overview

CYBELEC CybTouch CNC Controller
Headquartered in Switzerland Cybelec is at the forefront of pressbrake controller technology.

The CybTouch 12 Touch Draw CNC control features an intuitive touch interface with an advanced array of bending functions with vivid colour & large touch key interactive software. Interactive On-line help, and many other automatic functions that constantly guide the operator. CybTouch controllers are very easy to operate.

METALMASTER Pressbrakes
MetalMaster Quality Pressbrakes feature high durability, and provide precision bending capabilities. The Pressbrake main frames are constructed from rolled, stress relieved solid steel to prevent distortion during the bending process and under extreme continuous loads.

MetalMaster Pressbrakes are produced in a high volume production process and therefore are able to be manufactured cost effectively, resulting in an affordable price, representing value for money and quicker return on investment.

All electrical components are of European quality supplied by, Telemecanique, Merlin Gerin and ABB.

Features

CYBELEC CybTouch CNC Controller

LASER GUARDING

METALMASTER Pressbrakes

Large, vivid and high-contrast fully touchscreen control mounted on a swivel pendant for optimal ergonomics
Simple pages, clear display, large keys
Intuitive 2D graphical touch draw part profile programming
Bend material allowance calculation
Radius bump bending calculation function
Bending angle and back gauge correction
Various automatic calculations of other bend functions
Complete programming for efficient mass production with multiple bends
Bending sequences and programs can be saved for future use
Easy single bends with EasyBend page
Easy manual movement
On-line help and interactive warning pop-ups

Laser guarding provides close proximity operator protection allowing faster bending cycles, promoting higher productivity
The Laser system is compliant with requirements of EN61496-1, EN61496-2, ISO 13849-1 Ple, as well as AS/NZS 4024.1503
Australian designed electrical system featuring dual channel monitoring on all essential machine functions
Top beam speed & stopping performance are all real time monitored to ensure compliance with safety regulations

Dual Hydraulic rams balanced by a heavy duty torsion bar, Electronically controlled by the CYBELEC CT12 CNC control assuring accuracy & repeatability.
Servo driven Y Axis for quick and precise adjustment of angles for bending & corrections
Servo driven X Axis provides fast response & accuracy when positioning the backgauge
High performance side mount back gauge with linear guides & ballscrew provides fast and accurate positioning
Segmented heavy duty 86° top punch
European style punch holder with an adjustable wedge clamping system for crowning
Multi vee ('V') bottom die is made from one solid 4000mm die block design to handle heavy plate, safety edge vee ('V') is incorporated in bottom die block.
Sliding steel fabricated sheet supports enabling a wide range of material sizes to be aligned and supported at the correct required height. This feature is achieved with a "T" slot machined down the total length of the die bed, sheet supports are also adjustable vertically to assist in supporting material with return bends already folded.
Metal safety guarding surrounding the machine with rear sliding door fitted with micro switch ensuring operator safety.
Hydraulic MPA pressure gauge with quick adjust pressure control & over pressure protection allows the operator to accurately set the pressure required for different material thickness.
The vertical supporting slides are treated to provide greater wear resistance and increased accuracy.
Reinforced side frames providing addition support strength to machine throat
Includes safety control laser guarding system
Mild steel capacity is rated on hot rolled material with 250MPA
Pre-Commissioning:
1. Pressbrake is run & tested prior delivery
2. Hydraulic oil is included with machine

Includes

CYBELEC Touch 12 2D Graphical CNC Control
Touch draw profile programming
Easy bend function for quick one off jobs even if you are in the middle of a production bending program
86 Degree top punch with Segments (4x800, 1x365, 1x200, 1x100, 1x50, 1x40, 1x20, 1x15, 1x10)
Top tooling tool intermediate holder system with wedge type adjustment
Multi V bottom die block 130 x 130mm with a range of V's between 8mm~100mm
Laser guarding system
Servo motor X & Y axis for ultimate speed & performance
Sliding front sheet support arms
High performance side mount servo driven backgauge with linear guideways & ballscrew, 550mm travel
