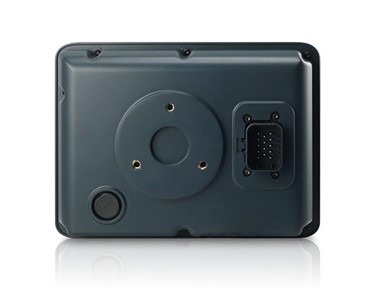

CZ6 Vehicle/Robust HMI

Supplier: Autech Control Group

The CZ6 Vehicle/Robust HMI is engineered for demanding industrial environments, offering a rugged, reliable touch interface for control and monitoring applications.

Built for harsh environments with wide temperature, shock resistance, and IP65 protection.

Key Features

Designed for harsh, industrial environments with a robust navy blue shell made from high temperature, high-strength, and UV-resistant materials.
Shock-absorbing internal structure and silicone pad for enhanced durability against vibration and impacts.
Wide voltage input range (9–36V DC), suitable for diverse installation requirements.
Rugged IP65-rated front panel for dust and water ingress protection.
Operates in extreme temperatures, from -20°C to 60°C.

Specifications

Display size	5.7" TFT
Resolution	640 × 480 px
Display colour	65,536 colours
Backlight	LED, 300 cd/m² brightness
CPU	RISC Cortex-A8 800MHz
Memory	256MB FLASH + 256MB DDR3; Expandable via 1x USB Host
Recipe/RTC	Real-time clock + 32KB recipe memory
Communication	RS485 & RS232 serial ports (one with built-in isolation)
Input range	DC 9V–36V
Rated Power	10W
Installation cutout	171 × 125 mm
Dimensions	180.3 × 133.9 × 70.7 mm
Weight	1 kg

Environmental & Certification Details

Operating temperature: -20°C to 60°C
Storage temperature: -30°C to 80°C
Working humidity: 10–90% RH (non-condensing)
Sine vibration: 10–500Hz, 30m/s², X, Y, Z directions per hour
Panel protection: IP65 front panel
EMC: FCC Class A compliance
Cooling method: Natural air cooling

To contact Autech Control Group about CZ6 Vehicle/Robust HMI use Get a quote.

Key Features

Designed for harsh, industrial environments with a robust navy blue shell made from high temperature, high-strength, and UV-resistant materials.
Shock-absorbing internal structure and silicone pad for enhanced durability against vibration and impacts.
Wide voltage input range (9–36V DC), suitable for diverse installation requirements.
Rugged IP65-rated front panel for dust and water ingress protection.
Operates in extreme temperatures, from -20°C to 60°C.

Specifications

Display size	5.7" TFT
Resolution	640 × 480 px
Display colour	65,536 colours
Backlight	LED, 300 cd/m² brightness
CPU	RISC Cortex-A8 800MHz
Memory	256MB FLASH + 256MB DDR3; Expandable via 1x USB Host
Recipe/RTC	Real-time clock + 32KB recipe memory
Communication	RS485 & RS232 serial ports (one with built-in isolation)
Input range	DC 9V–36V
Rated Power	10W
Installation cutout	171 × 125 mm
Dimensions	180.3 × 133.9 × 70.7 mm
Weight	1 kg

Environmental & Certification Details

Operating temperature: -20°C to 60°C
Storage temperature: -30°C to 80°C
Working humidity: 10–90% RH (non-condensing)
Sine vibration: 10–500Hz, 30m/s², X, Y, Z directions per hour
Panel protection: IP65 front panel
EMC: FCC Class A compliance
Cooling method: Natural air cooling

Read less...

To contact Autech Control Group about CZ6 Vehicle/Robust HMI use Get a quote.
