F2100E2 Future Series HMI

Supplier: Autech Control Group

F2100E2 Future Series HMI

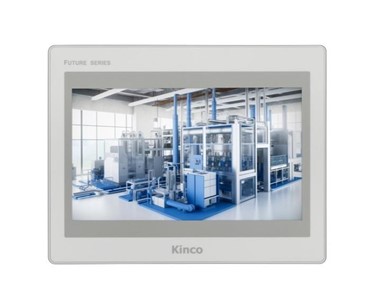

The F2100E2 Future Series HMI offers a user-friendly 10.1-inch industrial touch panel designed for reliable control and monitoring in demanding environments.

Robust industrial HMI with high-performance quad-core processor and dual Ethernet.

Key Features

10.1" TFT display with 16 million true colours and responsive 4-line resistive touch interface
High-performance quad-core ARM 1.8GHz CPU, 8GB eMMC Flash, and 1GB RAM
Dual Ethernet ports (10/100/1000 Mbps & 10/100 Mbps) and versatile serial communication (RS232/RS485/RS422)
USB host/slave for program download and peripheral connection
Built-in isolated power supply and triple-proof coating for enhanced reliability
IP65 certified front panel for dust and water resistance
Operates from 0°C to 50°C; CE authenticated
Configured using Kinco DToolsPro software

Performance Specifications

Display Size	10.1" TFT
Resolution	1024 × 600 px
Viewing Angle (L/R/U/D)	70/70/60/60
Contrast Ratio	500:1
Brightness	350cd/m²
Backlight Life	>30,000 hours
Touch Panel	4-line precision resistive
Memory	8GB eMMC Flash + 1GB RAM

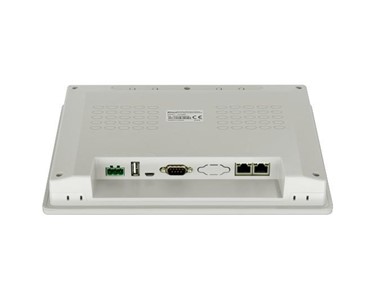

Connectivity

Ethernet: LAN0 (10/100/1000 Mbps), LAN1 (10/100 Mbps)
Serial Ports: COM0 (RS232/RS485/RS422), COM2 (RS232)
USB Host and USB Slave
Supports program download via Ethernet, USB Slave, or U disk

Electrical and Environmental Specifications

Power Supply	DC10.8V ~ DC28V, isolated
Rated Power	7W @ DC24V
Insulation Resistance	>50MO @ 500V DC
Pressure Test	500VAC 1 min
Temperature Range	Operation: 0~50°C, Storage: -20~60°C
Humidity	10~90% RH (Non-condensing)
Seismic Resistance	10~500Hz, 30m/s², X,Y,Z direction/hour
Panel Protection	IP65 certified
Certification	CE (EN61000-6-4:2019, EN61000-6-2:2019)

Dimensions and Weight

Overall Dimension	271 × 213 × 38 mm
Panel Cut-out	260 × 202 mm
Weight	1.1 kg

To contact Autech Control Group about F2100E2 Future Series HMI use Get a quote.

Key Features

10.1" TFT display with 16 million true colours and responsive 4-line resistive touch interface
High-performance quad-core ARM 1.8GHz CPU, 8GB eMMC Flash, and 1GB RAM
Dual Ethernet ports (10/100/1000 Mbps & 10/100 Mbps) and versatile serial communication (RS232/RS485/RS422)
USB host/slave for program download and peripheral connection
Built-in isolated power supply and triple-proof coating for enhanced reliability
IP65 certified front panel for dust and water resistance
Operates from 0°C to 50°C; CE authenticated
Configured using Kinco DToolsPro software

Performance Specifications

Display Size	10.1" TFT
Resolution	1024 × 600 px
Viewing Angle (L/R/U/D)	70/70/60/60
Contrast Ratio	500:1
Brightness	350cd/m²
Backlight Life	>30,000 hours
Touch Panel	4-line precision resistive
Memory	8GB eMMC Flash + 1GB RAM

Connectivity

Ethernet: LAN0 (10/100/1000 Mbps), LAN1 (10/100 Mbps)
Serial Ports: COM0 (RS232/RS485/RS422), COM2 (RS232)
USB Host and USB Slave
Supports program download via Ethernet, USB Slave, or U disk

Electrical and Environmental Specifications

Power Supply	DC10.8V ~ DC28V, isolated
Rated Power	7W @ DC24V
Insulation Resistance	>50MO @ 500V DC
Pressure Test	500VAC 1 min
Temperature Range	Operation: 0~50°C, Storage: -20~60°C
Humidity	10~90% RH (Non-condensing)
Seismic Resistance	10~500Hz, 30m/s², X,Y,Z direction/hour
Panel Protection	IP65 certified
Certification	CE (EN61000-6-4:2019, EN61000-6-2:2019)

Dimensions and Weight

Overall Dimension	271 × 213 × 38 mm
Panel Cut-out	260 × 202 mm
Weight	1.1 kg

Read less...

To contact Autech Control Group about F2100E2 Future Series HMI use Get a quote.

F2100E2-DataSheet-(3.79MB)
