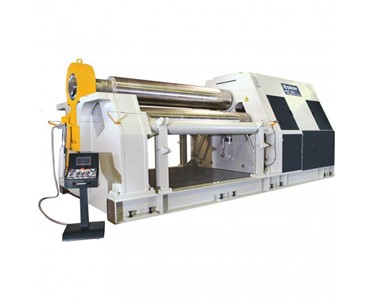

Name: Hydraulic NC Plate Curving Rolls - 4-Axis NC Control - 4R HSS NC 30-28
Price: 47500 AUD
Availability: InStock

Receive 1-3 days from order

This machine is particularly suitable for medium plate and heavy plate for the production of cylinders and varying radiused parts
Bottom pinching roll with hydraulic positioning (top and down movement)
Two lateral rolls with double pinch pyramid action (bottom pinching and lateral rolls with balancing system to guarantee perfect parallelism and high quality production)
Top roll is driven by a hydraulic motor coupled to the planetary gear box (equipped with overload protection system) - lateral side rolls are driven - bottom roll is idle (free)
Digital displays (3pcs) are provided for locating setting of roll positions
Hydraulic drop end for ease of cylinder removal
Steel welded heavy frame construction, thermally stress relieved
Induction hardened rolls are of high tensile carbon steel forgings
Conical bending device
Central lubrication system
Two speed working system
Hydraulic elements: Motor and pump group, pressure valves, solenoid valves, oil display and etc Bosch Rexroth or Parker or Duplomatic (Italian) components used
Electric equipment: Siemens or Telemecanique or NAIS (matsushita Corp)
SAE 1050 (CK45) certificated forged steel rolls with high tensile strength
Mild steel capacity is rated on hot rolled material with 250MPA

This machine is particularly suitable for medium plate and heavy plate for the production of cylinders and varying radiused parts
Bottom pinching roll with hydraulic positioning (top and down movement)
Two lateral rolls with double pinch pyramid action (bottom pinching and lateral rolls with balancing system to guarantee perfect parallelism and high quality production)
Top roll is driven by a hydraulic motor coupled to the planetary gear box (equipped with overload protection system) - lateral side rolls are driven - bottom roll is idle (free)
Digital displays (3pcs) are provided for locating setting of roll positions
Hydraulic drop end for ease of cylinder removal
Steel welded heavy frame construction, thermally stress relieved
Induction hardened rolls are of high tensile carbon steel forgings
Conical bending device
Central lubrication system
Two speed working system
Hydraulic elements: Motor and pump group, pressure valves, solenoid valves, oil display and etc Bosch Rexroth or Parker or Duplomatic (Italian) components used
Electric equipment: Siemens or Telemecanique or NAIS (matsushita Corp)
SAE 1050 (CK45) certificated forged steel rolls with high tensile strength
Mild steel capacity is rated on hot rolled material with 250MPA
