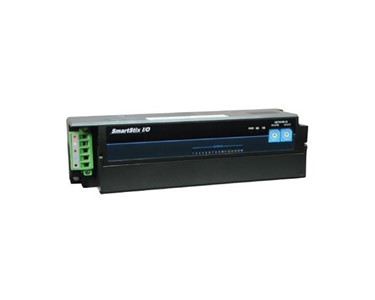

I/O Module | SmartStix Input/Output Modules

SmartStix I/O modules are designed for expanding or providing remote input/output points for Horner OCS systems, supporting easy integration via CsCAN.

Flexible I/O expansion for OCS systems with easy CsCAN integration.

SmartStix I/O modules are ideal when only a limited number of input or output points are required, making them well suited for remote expansion or as an addition to any Horner OCS application equipped with a CsCAN port.

Key Features

Compatible with all Horner OCS/RCS units featuring a CsCAN port
Equipped with a 5-pin terminal-style network connector (plug)
Removable terminal strip included (unless otherwise noted)
Various models for digital and analogue inputs/outputs
Models available for both standard use and legacy replacement
Accessories for CsCAN wiring available (bulk cable, alternate plugs, adapters)

Model Number	Digital Outputs	Digital Inputs	Analogue Outputs	Analogue Inputs	Relay Outputs
HE559DIM610	-	16 × 24V DC	-	-	-
HE559DIM710	-	32 × 24V DC	-	-	-
HE559DIQ816	16 × 24V DC	16 × 24V DC	-	-	-
HE559DQM602	-	-	-	-	16 relay outputs (24VDC, 220VAC, 2A)
HE559DQM606	16 × 24V DC	-	-	-	-
HE559DQM706	32 × 24V DC	-	-	-	-
HE559ADC970*	-	-	-	12 analogue (0–10V, 0–5V, 0–20mA, 4–20mA, 10K Thermistor; 14-bit)	-
HE559MIX577*	-	-	2 analogue (±10V, ±20mA; 14-bit)	4 analogue (±10V, ±20mA; 14-bit)	-
HE559MIX977*	-	-	4 analogue (±10V, ±20mA; 14-bit)	8 analogue (±10V, ±20mA; 14-bit)	-

Key Features

Compatible with all Horner OCS/RCS units featuring a CsCAN port
Equipped with a 5-pin terminal-style network connector (plug)
Removable terminal strip included (unless otherwise noted)
Various models for digital and analogue inputs/outputs
Models available for both standard use and legacy replacement
Accessories for CsCAN wiring available (bulk cable, alternate plugs, adapters)

Model Number	Digital Outputs	Digital Inputs	Analogue Outputs	Analogue Inputs	Relay Outputs
HE559DIM610	-	16 × 24V DC	-	-	-
HE559DIM710	-	32 × 24V DC	-	-	-
HE559DIQ816	16 × 24V DC	16 × 24V DC	-	-	-
HE559DQM602	-	-	-	-	16 relay outputs (24VDC, 220VAC, 2A)
HE559DQM606	16 × 24V DC	-	-	-	-
HE559DQM706	32 × 24V DC	-	-	-	-
HE559ADC970*	-	-	-	12 analogue (0–10V, 0–5V, 0–20mA, 4–20mA, 10K Thermistor; 14-bit)	-
HE559MIX577*	-	-	2 analogue (±10V, ±20mA; 14-bit)	4 analogue (±10V, ±20mA; 14-bit)	-
HE559MIX977*	-	-	4 analogue (±10V, ±20mA; 14-bit)	8 analogue (±10V, ±20mA; 14-bit)	-

Read less...
