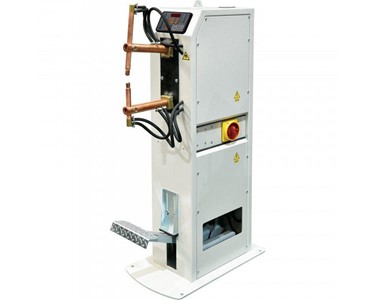

Industrial Pedestal Spot Welder - TECNA® 4643

Supplier: Hare & Forbes Machinery House

Industrial Pedestal Spot Welder - TECNA® 4643 | 25kVA (3 + 3mm Maximum Steel Thickness)

Receive 1-3 days from order

Overview

TECNA spot welders are designed to meet every need of spot welding. The new stationary ergonomic frame designed by TECNA helps to facilitate the operator’s work. The control unit has been positioned frontally to allow the operator to view the welding data even during the working cycle.

Features

TE101 TECNA MICROPROCESSOR CONTROL UNIT:

Arms adjustable in length allowing a better working flexibility
Chrome-copper electrode-holders for long life and heavy duty service, designed for straight and angled fitting
Adjustable electrode stroke
Epoxy resin coated transformer
Water-cooled transformer, arms and electrodes
Microprocessor control unit TECNA TE101
Adjustable electrode force; a microswitch starts the welding cycle when the desired pre-set value is reached
The foot pedal is adjustable in length

Synchronous thyristor drive with phase-shift control for welding current adjustment.
Built in ammeter (RMS value), 2 selectable ranges (18-56 kA).
Storing of 99 welding programs.
Inputs for external selection of 31 programs or 15 programs with parity control.
Welding times adjustment in half-periods.
Pre-weld, slope and pulse functions.
Welding current control limits. Error condition signaling output and function to stop welder operation.
Single and repeat operating mode. WELD/NO WELD function.
Welding current compensation function to assist welding of oxidized sheets and rods.
Possibility to connect two independent start of cycle device using different welding programs.
Auto retain disabling for manually actuated welders.
First phase shift delay adjustment. It enables the machine line current best balance.
Cos f adjustment, allow to optimize current adjustment linearity.
End of cycle output for automation applications.
Thermostatic protection input.
Self-adjustment to the mains frequency 50/60 Hz.
Control of solenoid valve 24 Vdc 7,2 W max with short circuit protection.
