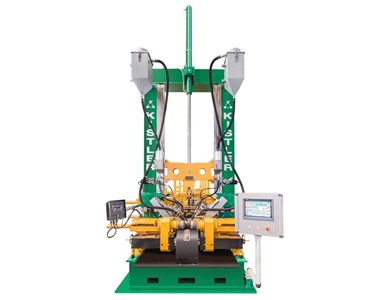

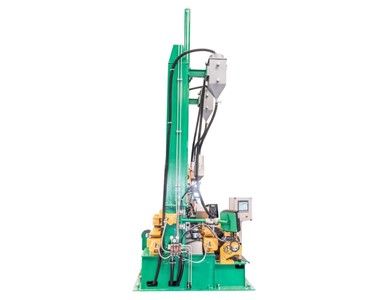

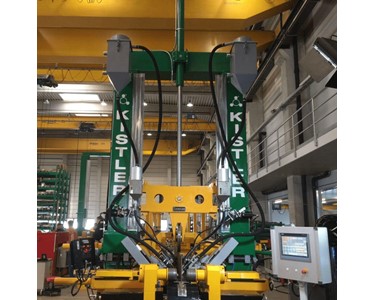

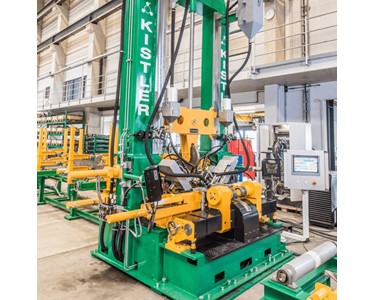

Kistler - Beam Welding Machine | LBL Range Get latest price

Read more...

To contact Specialist Machinery Sales about Kistler Beam Welding Machine | LBL Range use Get a quote.

Specifications

1250 MD

• Web heights in mm (min): 200
• Web heights in mm (max): 1250
• Web thickness in mm (min): 4
• Web thickness in mm (max): 25
• Flange width in mm (min): 100
• Flange width in mm (max): 600
• Flange thickness in mm (min): 5
• Flange thickness in mm (max): 40
• Weight in kg/m (min): -
• Weight in kg/m (max): 1000
• Length in m (min): 6
• Length in m (max): 12

2000 MD

• Web heights in mm (min): 200
• Web heights in mm (max): 2000
• Web thickness in mm (min): 5
• Web thickness in mm (max): 30
• Flange width in mm (min): 100
• Flange width in mm (max): 1000
• Flange thickness in mm (min): 6
• Flange thickness in mm (max): 50
• Weight in kg/m (min): -
• Weight in kg/m (max): 1000
• Length in m (min): 6
• Length in m (max): 12

Features

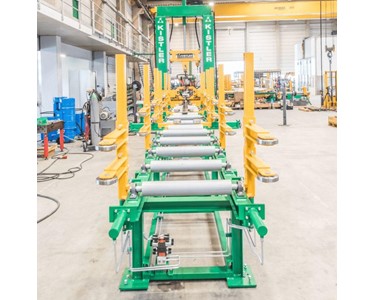

• Continuous production of I and T beams (parallel or tapered)

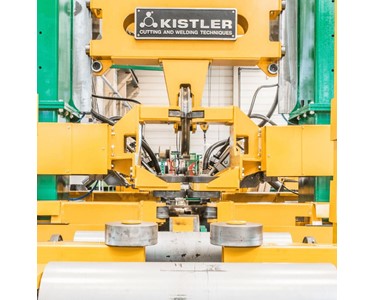

• Vertical Web plate welding with no tack weld required
• Simultaneous welding on both sides of the Web
• 180° rotation for second flange alignment and welding
• Available in larger versions upon request

Learn more here: https://www.smsales.com.au/machinery/fabrication-welding/beam-welding-rotation/kistler-lbl-beam-welding/
