Beam Welding Machine | VBL Range

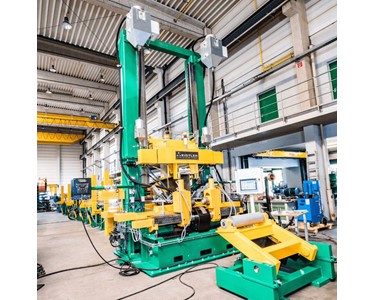

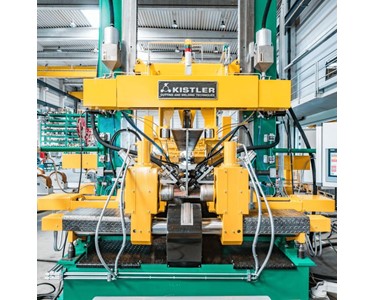

Designed for the continuous production of I and T beams. It welds the web plate in the vertical position, with simultaneous welding of both flanges. The process involves aligning and welding each flange after a 180° rotation.

Video for Kistler Beam Welding Machine | VBL Range

Dual-flange simultaneous beam welding

Specifications

VBL-S

Web heights in mm (min): 180
Web heights in mm (max): 2000
Web thickness in mm (min): 8
Web thickness in mm (max): 25
Flange width in mm (min): 100
Flange width in mm (max): 1000
Flange thickness in mm (min): 8
Flange thickness in mm (max): 50
Weight in kg/m (min): -
Weight in kg/m (max): 1000
Length in mm (min): 2000
Length in mm (max): 25000

VBL-M

Web heights in mm (min): 200
Web heights in mm (max): 3000
Web thickness in mm (min): 8
Web thickness in mm (max): 30
Flange width in mm (min): 150
Flange width in mm (max): 1250
Flange thickness in mm (min): 8
Flange thickness in mm (max): 50
Weight in kg/m (min): -
Weight in kg/m (max): 2000
Length in mm (min): 2000
Length in mm (max): 45000

VBL-L

Web heights in mm (min): 200
Web heights in mm (max): 3000
Web thickness in mm (min): 8
Web thickness in mm (max): 30
Flange width in mm (min): 150
Flange width in mm (max): 1250
Flange thickness in mm (min): 8
Flange thickness in mm (max): 50
Weight in kg/m (min): -
Weight in kg/m (max): 2000
Length in mm (min): 2000
Length in mm (max): 45000

Features

Continuous production of welded I and T beams
The web plate is positioned vertically for welding
Simultaneous welding of both flanges from both sides of the web
No tack welding is required except for the leading edge
180° rotation of the beam section for alignment and welding of the second flange
Designed for both parallel and tapered beam production

Learn more here: https://www.smsales.com.au/machinery/fabrication-welding/beam-welding-rotation/kistler-vbl-range-beam-welding-machine

To contact Specialist Machinery Sales about Kistler Beam Welding Machine | VBL Range use Get a quote.

Specifications

VBL-S

Web heights in mm (min): 180
Web heights in mm (max): 2000
Web thickness in mm (min): 8
Web thickness in mm (max): 25
Flange width in mm (min): 100
Flange width in mm (max): 1000
Flange thickness in mm (min): 8
Flange thickness in mm (max): 50
Weight in kg/m (min): -
Weight in kg/m (max): 1000
Length in mm (min): 2000
Length in mm (max): 25000

VBL-M

Web heights in mm (min): 200
Web heights in mm (max): 3000
Web thickness in mm (min): 8
Web thickness in mm (max): 30
Flange width in mm (min): 150
Flange width in mm (max): 1250
Flange thickness in mm (min): 8
Flange thickness in mm (max): 50
Weight in kg/m (min): -
Weight in kg/m (max): 2000
Length in mm (min): 2000
Length in mm (max): 45000

VBL-L

Web heights in mm (min): 200
Web heights in mm (max): 3000
Web thickness in mm (min): 8
Web thickness in mm (max): 30
Flange width in mm (min): 150
Flange width in mm (max): 1250
Flange thickness in mm (min): 8
Flange thickness in mm (max): 50
Weight in kg/m (min): -
Weight in kg/m (max): 2000
Length in mm (min): 2000
Length in mm (max): 45000

Features

Continuous production of welded I and T beams
The web plate is positioned vertically for welding
Simultaneous welding of both flanges from both sides of the web
No tack welding is required except for the leading edge
180° rotation of the beam section for alignment and welding of the second flange
Designed for both parallel and tapered beam production

Learn more here: https://www.smsales.com.au/machinery/fabrication-welding/beam-welding-rotation/kistler-vbl-range-beam-welding-machine

Read less...

To contact Specialist Machinery Sales about Kistler Beam Welding Machine | VBL Range use Get a quote.
