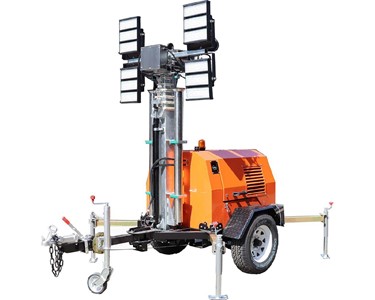

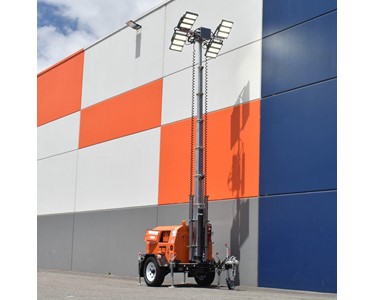

Name: Lighting Tower LED 4 x 500WATT 48VDC
Price: 26900.00 AUD
Availability: InStock

Key Features

4 x 500W high-efficiency 48V DC LED lights producing 290,000 lumens.
Illuminates up to 8,000 m² at 20 LUX.
Average LED life of 30,000 hours.
Kubota Z482 twin-cylinder diesel engine - highly reliable and fuel efficient.
9 metre hydraulic mast with full 180° electric rotation and tilt.
Low 24V DC operation for enhanced site safety.
130 litre diesel tank allowing up to 200 hours runtime at 0.65 litres/hour.
Easy servicing with large canopy doors on gas struts.
Equipped with 4 mechanical stabiliser feet, jockey wheel, cable-operated disc brakes, and large 16" heavy-duty tyres.
Fully compliant with VIN, ready for road registration.

Specifications

Engine	Kubota Z482 Diesel (2 cylinder)
Fuel Type	Diesel
RPM	3000
Cooling	Liquid cooled
Controller	Smartgen ALC704 (with timer)
Fuel Tank Capacity	130 L
Running Time	200 hours (on one tank)
Fuel Consumption	0.65 L/hr
Lamp Power	4 × 500W LED
Lumens	290,000
Illuminated Area	8000 m² @ 20 LUX
Mast Height	9 m (hydraulic)
Mast Rotation/Tilt	180° electric rotation & tilt
Wind Resistance	80 km/h (gale) or 100 km/h (gusts)
Chassis	Single axle, 2 wheels, 4 stabilisers, jockey wheel
Brakes	Disc brakes (ADR standard) via cable to tow hitch
Compliance	VIN supplied, ready for registration
Weight	1180 kg
Dimensions (L×W×H)	320 × 164 × 255 cm
Shipping Weight	1180 kg
Shipping Dimensions (L×W×H)	320 × 205 × 255 cm
