Platform & Fork Stacker – 400kg Capacity – AdjustableForks & Removable Platform

The MPJ4150 and MPJ4180 Platform & Fork Stackers areversatile manual lifting solutions designed for safely lifting, loading andunloading pallets, skids and heavy items in warehouses, workshops andindustrial environments.

Featuring a removable platform and adjustable fork tynes,these stackers provide flexible handling options for both palletised loads andgeneral materials. The foot pedal hydraulic lifting system allows smoothoperation while reducing manual handling effort and workplace strain.

Available in two lift height options to suit differentapplications:

Features

• 400kg load capacity
• Two-in-one platform and fork lifting solution

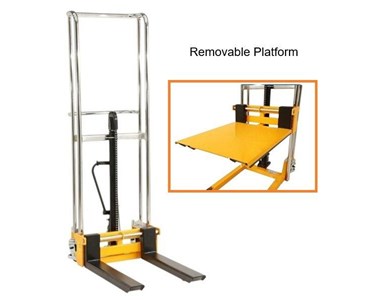

• Removable platform for versatile material handling

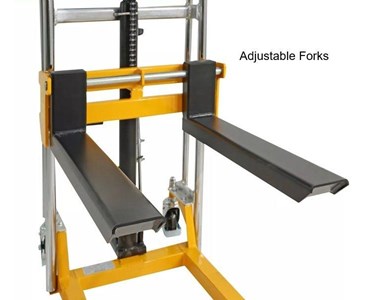

• Adjustable fork tynes for pallet and skid handling
• Lifts directly from ground level
• Foot pedal hydraulic lifting system for easier operation
• Hard chrome-plated frame for durability and corrosion resistance
• Built-in overload protection valve
• Stable design with frame rollers and steering rollers
• Rear braking system for secure operation
• Manual push operation for easy positioning
• Polyurethane castors for smooth movement and floor protection

MPJ4150 Specifications – 1.5m Lift

Model: MPJ4150
Capacity: 400kg
Min Fork / Platform Height: 85mm
Max Fork / Platform Height: 1500mm
Load Centre: 325mm
Fork Length: 650mm
Fork Width: 215–550mm
Platform Depth: 650mm
Platform Width: 570mm
Load Roller Diameter: 75mm
Steering Wheel Diameter: 125mm
Freight Dimensions: 1710 × 590 × 400mm
Net Weight: 85kg

MPJ4180 Specifications – 1.8m Lift

Model: MPJ4180
Capacity: 400kg
Min Fork / Platform Height: 85mm
Max Fork / Platform Height: 1800mm
Load Centre: 325mm
Fork Length: 650mm
Fork Width: 215–550mm
Platform Depth: 660mm
Platform Width: 580mm
Load Roller Diameter: 75mm
Steering Wheel Diameter: 125mm
Freight Dimensions: 1710 × 590 × 400mm
Net Weight: 85kg

Applications

Suitable for:

• Warehouses
• Workshops
• Manufacturing facilities
• Loading and unloading areas
• Pallet and skid handling
• Maintenance operations
• Industrial material handling

Please select your required model from the optionsavailable. Each model is sold separately.

Australian Owned & Operated | Australia Wide Delivery

Link to both models on our website:

https://www.mitaco.com.au/products/lifting-equipment/manual-lifters-stackers/platform-fork-lifter-1-5m-lift-400kg-capacity

https://www.mitaco.com.au/products/lifting-equipment/manual-lifters-stackers/platform-fork-lifter-1-8m-lift-400kg-capacity
