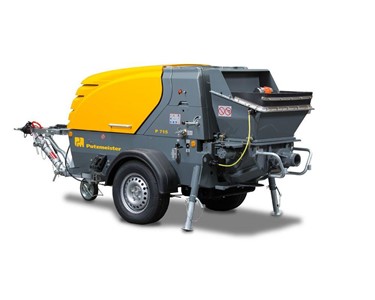

Mobile Stationary Concrete Pump | P 715 TD - SD Get latest price

The Putzmeister stationary concrete pump P 715 is small, light and features a powerful dual-piston pump. It is used for manual, not synchronized additive adding shotcrete and fine concrete up to a grain size of 16 mm. With a delivery pressure of up to 68 bar and an output of 18 m³/h, it is a real power pump, despite its small dimensions and low weight.

Key Features

• Maintance and service-friendly
• Operating panel ergonomical on one side
• Large hopper 280 l with rubber collar and protective grid
• Piston pump unit extremely robust
• With less than 1900 kg the lightest among the fine concrete pumps
• Chassis for road use

Technical Details

• Feed Hopper: 250 l
• Delivery Pressure: 68 bar
• Horizontal Reach: 300 m
• Vertical Reach: 100 m
• Pump: hydraulic 2 cylinder
• Strokes (piston side): 27
• Material Cylinder Diameter-Stroke Length: 150/700 mm
• Max. Aggregate Size: 16 mm

To contact Putzmeister Oceania Pty Ltd about Mobile Stationary Concrete Pump | P 715 TD - SD use Get a quote.

The Putzmeister stationary concrete pump P 715 is small, light and features a powerful dual-piston pump. It is used for manual, not synchronized additive adding shotcrete and fine concrete up to a grain size of 16 mm. With a delivery pressure of up to 68 bar and an output of 18 m³/h, it is a real power pump, despite its small dimensions and low weight.

Key Features

• Maintance and service-friendly
• Operating panel ergonomical on one side
• Large hopper 280 l with rubber collar and protective grid
• Piston pump unit extremely robust
• With less than 1900 kg the lightest among the fine concrete pumps
• Chassis for road use

Technical Details

• Feed Hopper: 250 l
• Delivery Pressure: 68 bar
• Horizontal Reach: 300 m
• Vertical Reach: 100 m
• Pump: hydraulic 2 cylinder
• Strokes (piston side): 27
• Material Cylinder Diameter-Stroke Length: 150/700 mm
• Max. Aggregate Size: 16 mm
