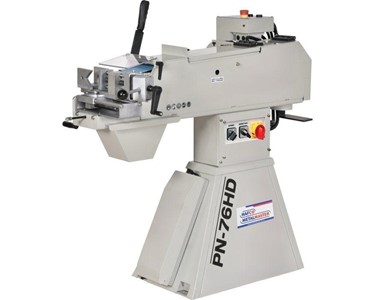

Pipe & Tube Notcher - Linisher - PN-76HD | Dual Direction c/w 3 Working Stations | Includes 7 sets of Rollers

Receive 1-3 days from order

Overview

The PN-76HD Pipe & Tube Notcher / Linisher is designed primarily for notching of tube & pipe with the added versatility that's ideal for deburring & linishing all types of steels. At the notching station, the swivel vice allows to notch your steel at any angle between 90 to 30 degrees & with the quick-change tension system you can quickly change the diameter of the front roller to suit the diameter of the notch you require. The heavy-duty base has storage for the 7 sets of notching rollers to keep them within easy reach saving you time when changing between sizes & with a powerful 3Kw 415v motor it will remove material quickly & easily.

Features

Ø20-76mm OD tube notching capacity
1/2" - 2-1/2" NB pipe notching capacity
Powerful 3kW / 4hp, 415V motor with overload protection
2 x speed motor 1400rpm for stainless steel, 2800rpm for steel
Triple working stations for Notching, de-burring & edge sanding
Quick action compound swivel vice from 30-90º
Large diameter bearings on notching rollers for HD applications
Heavy duty leadscrew vice for increasing clamp pressure
Quick change belt system for fast and easy change of grinding rolls – no tools required
Pre-set spring device allows for continuous belt tension
Solid pedestal stand with built in storage rack for notching rollers

Includes

7 notching rollers suitable for the following material sizes
Ø1/2" NB pipe or Ø20mm tube
Ø3/4" NB pipe or Ø26mm tube
Ø1" NB pipe or Ø32mm tube
Ø1-1/4" NB pipe or Ø42mm tube
Ø1-1/2" NB pipe or Ø48mm tube
Ø2" NB pipe or Ø60mm tube
Ø2-1/2" NB pipe or Ø76mm tube
1 x linishing belt

Overview

Features

Ø20-76mm OD tube notching capacity
1/2" - 2-1/2" NB pipe notching capacity
Powerful 3kW / 4hp, 415V motor with overload protection
2 x speed motor 1400rpm for stainless steel, 2800rpm for steel
Triple working stations for Notching, de-burring & edge sanding
Quick action compound swivel vice from 30-90º
Large diameter bearings on notching rollers for HD applications
Heavy duty leadscrew vice for increasing clamp pressure
Quick change belt system for fast and easy change of grinding rolls – no tools required
Pre-set spring device allows for continuous belt tension
Solid pedestal stand with built in storage rack for notching rollers

Includes

7 notching rollers suitable for the following material sizes
Ø1/2" NB pipe or Ø20mm tube
Ø3/4" NB pipe or Ø26mm tube
Ø1" NB pipe or Ø32mm tube
Ø1-1/4" NB pipe or Ø42mm tube
Ø1-1/2" NB pipe or Ø48mm tube
Ø2" NB pipe or Ø60mm tube
Ø2-1/2" NB pipe or Ø76mm tube
1 x linishing belt
