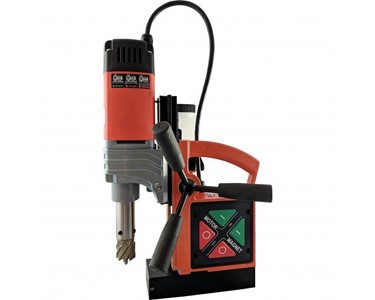

Portable Magnetic Drill - EM-40 | Ø40mm Drill Capacity - Manual Feed

Receive 1-3 days from order

Overview

The EM-40 is the flagship of Excision's Magnetic based drill range. With 40mm capacity and advanced safety features, this is the machine for industrial workloads. Double height adjustment allows a broad range of applications including the use of a standard 13mm chuck and jobber drill.

On-site hole cutting in steel plates, H-Beams shaped bars, framework, ship building, bridge construction and repair, steel reinforcements, and many other metal working and construction jobs.

NOTE: Shown with optional broach cutter

Features

Drills up to 40mm diameter through 50mm plate
2 Coil 9,000N Magnetic adhesion for industrial use
Spring loaded guides for rigid gliding and reduced vibration
Height adjustable slide enables an increased range of applications including standard twist drills
Smart start feature protects the motor to increase longevity
Direct Weldon arbor type spindle for use with all 19mm shank core drills
Durable touch pad for ergonomic use
Hybrid relays to protect circuit board from voltage spikes
Integrated coolant system to increase the life of your core drills
130mm stroke
Height adjustment 86mm
Speed 450rpm
1100W motor
Only 10.6kg weight

To contact Hare & Forbes Machinery House about Portable Magnetic Drill - EM-40 use Get a quote.

Overview

Features

Drills up to 40mm diameter through 50mm plate
2 Coil 9,000N Magnetic adhesion for industrial use
Spring loaded guides for rigid gliding and reduced vibration
Height adjustable slide enables an increased range of applications including standard twist drills
Smart start feature protects the motor to increase longevity
Direct Weldon arbor type spindle for use with all 19mm shank core drills
Durable touch pad for ergonomic use
Hybrid relays to protect circuit board from voltage spikes
Integrated coolant system to increase the life of your core drills
130mm stroke
Height adjustment 86mm
Speed 450rpm
1100W motor
Only 10.6kg weight

Read less...

To contact Hare & Forbes Machinery House about Portable Magnetic Drill - EM-40 use Get a quote.
