Precision Auto Hydraulic Surface Grinder ...

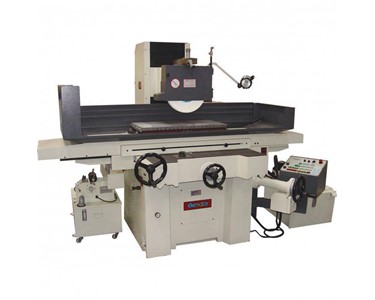

Precision Auto Hydraulic Surface Grinder - BMT-4080AH

Supplier: Hare & Forbes Machinery House

Precision Auto Hydraulic Surface Grinder - BMT-4080AH | 860 x 450mm Table Travel | Includes AD5 Auto Control

Receive 1-3 days from order

Overview

Manufactured in Taiwan

When it comes to surface grinding the Bemato BMT-4080AH Automatic AD5 controlled machine is in a class above the rest in precision, quality, accuracy and functionality, this unique machine is accepted and is recognised in the majority of engineering companies' worldwide.

Special design features to improve the finish of your work piece is the Programmable AD5 control, allowing operator to work on other projects or jobs whilst machine is in automatic mode. This also has additional functions for rough grinding, finish grinding, spark-out and head will rapid return automatically when programme has finished. Also incorporated within the unit is an electromagnetic chuck with electronic demagnetise.

NOTE: Larger models also available on special order request

Features

Optimized Structure:
The major parts are manufactured from high quality cast iron combined with an outstanding structural design. These parts have been stress relieved to ensure maximum rigidity, stability, minimize vibration and maintain machining accuracy
Precision Spindle Design:
The spindle runs in a class P4 high precision angular contact bearing, assuring run out accuracy in 2µm. The cartridge-type spindle is completely sealed and lubricated for long working lifetime, providing high accuracy grinding and a long service life.
Turcite-B on Slideways:
The X,Z axis slideways have been specially coated with a durable turcite-B to minimise friction between slides and to provide long life accuracy
Automatic Pressure Lubrication:
This system lubricates the slide-ways and screws with a timer adjustment providing optimum machine conditions
AD5 NC Auto Down Feed:
Automatic down-feed AD5 control and rapid UP/DOWN system standard on Bemato models are a 3 axis fully automated for greatly increasing operational convenience
Plunge and surface grinding
Cross & vertical micro incremental feed 0.001mm
2-step grinding procedure: roughing - finishing
Rapid auto return to home positions
Pre-set spark out

Includes

Electromagnetic chuck with demagnetise,
Balancing arbor
Balancing stand
Parallel dresser
Coolant system with magnetic separator
Wheel flange
LED Work light
AD5 control

Optional Accessories

Dust suction with coolant system
Magnetic separator with coolant system
Magnetic separator and dust suction with coolant system
Auto. paper strip filter with coolant system
Auto. paper strip filter and magnetic separator with coolant system

Overview

Features

Optimized Structure:
The major parts are manufactured from high quality cast iron combined with an outstanding structural design. These parts have been stress relieved to ensure maximum rigidity, stability, minimize vibration and maintain machining accuracy
Precision Spindle Design:
The spindle runs in a class P4 high precision angular contact bearing, assuring run out accuracy in 2µm. The cartridge-type spindle is completely sealed and lubricated for long working lifetime, providing high accuracy grinding and a long service life.
Turcite-B on Slideways:
The X,Z axis slideways have been specially coated with a durable turcite-B to minimise friction between slides and to provide long life accuracy
Automatic Pressure Lubrication:
This system lubricates the slide-ways and screws with a timer adjustment providing optimum machine conditions
AD5 NC Auto Down Feed:
Automatic down-feed AD5 control and rapid UP/DOWN system standard on Bemato models are a 3 axis fully automated for greatly increasing operational convenience
Plunge and surface grinding
Cross & vertical micro incremental feed 0.001mm
2-step grinding procedure: roughing - finishing
Rapid auto return to home positions
Pre-set spark out

Includes

Electromagnetic chuck with demagnetise,
Balancing arbor
Balancing stand
Parallel dresser
Coolant system with magnetic separator
Wheel flange
LED Work light
AD5 control

Optional Accessories

Dust suction with coolant system
Magnetic separator with coolant system
Magnetic separator and dust suction with coolant system
Auto. paper strip filter with coolant system
Auto. paper strip filter and magnetic separator with coolant system

Read less...
