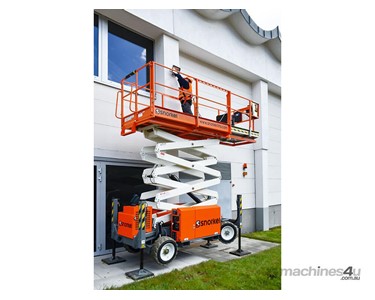

Snorkel - S2755RT Rough Terrain Scissor Lift

S2755RT Rough Terrain Scissor Lift

The S2755RT is a rough terrain scissor lift engineered for challenging jobsite conditions, delivering compact manoeuvrability and robust outdoor performance.

The most compact all-terrain scissor lift in its class, designed for confined outdoor job sites.

The S2755RT rough terrain scissor lift is built tough for demanding outdoor environments and is the most compact in its class in Australia. With automatic hydraulic outriggers and rugged four-wheel drive, it's ideal for working safely on uneven or soft surfaces. The lift's narrow width of just 1.45m makes it perfect for navigating tight jobsite spaces.

Key Features

Diesel-powered all-terrain design
Excellent ground clearance and four-wheel drive capability
Hydraulic stabilisers with automatic levelling
Roll-out extension deck (1.2m) for increased reach
Non-marking, foam-filled tyres suitable for indoor and outdoor use
Proportional joystick controls
Optional 240V outlet and bi-energy power source (electric/diesel)
Manual lowering valve and descent alarm for extra safety
Flashing amber light, dual lanyard attachment points, and drive motion alarm
Power line to platform and oscillating axle
Hour meter

Specifications

Maximum Working Height	10.1m
Maximum Platform Height	8.1m
Platform Size (Stowed)	1.4m x 2.73m
Platform Size (Extended)	1.4m x 3.93m
Extension Deck Length	1.2m
Overall Width	1.45m
Overall Length	3.3m
Stowed Height	2.5m
Minimum Height (Guardrails Folded)	2.13m
Ground Clearance	260mm
Platform Capacity (SWL)	300kg
Maximum Drive Height	7.8m
Maximum Wind Speed	12.5m/s
Drive Speed Below 2.4m	5.2km/h
Drive Speed Above 2.4m	0.5km/h
Raise/Lower Time	26/30 seconds
Gradeability	35%
Max Outrigger Levelling (Front to Rear)	6°
Max Outrigger Levelling (Side to Side)	10°
Inside Turning Radius	2.5m
Outside Turning Radius	4.75m
Exit/Entry Angle	20°
Tyres	0.58m x 0.22m – 12 non-marking
Controls	Proportional joystick
Drive System	4 wheel drive
Power Source	Kubota diesel engine
Weight	2,750kg

Additional Benefits

Biodegradable hydraulic oil option for reduced environmental impact
Bi-energy option for switching between electric and diesel, suitable for different site requirements
2 years parts & labour, 5-year structural warranty

Ideal for construction and general maintenance work on rough terrain or in confined spaces demanding compact and versatile access machinery.
