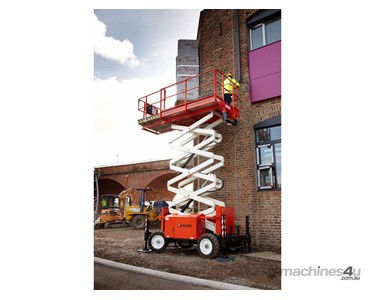

Snorkel S3370RT Rough Terrain Scissor Lift ...
Condition | New |
Category | Rough Terrain Scissor Lift |
Model | S3370RT |
Max Working Height | 12.0 m |
Max Platform Height | 10.0 m |
Platform Size (Stowed) | 1.6 m x 2.8 m |
Platform Size (Extended) | 1.6 m x 4.0 m |
Extension Deck Length | 1.2 m |
Overall Width | 1.8 m |
Overall Length | 3.4 m |
Stowed Height | 2.7 m |
Minimum Height (Guardrails Folded) | 2.0 m |
Ground Clearance | 330 mm |
Platform Capacity (SWL) | 454 kg |
Max Drive Height | 10.0 m |
Maximum Wind Speed | 12.5 m/s |
Max Drive Speed (Stowed) | 4.5 km/h |
Max Drive Speed (Elevated) | 0.3 km/h |
Raise/Lower Time | 50/60 seconds |
Gradeability | 35% |
Max Outrigger Levelling (Front to Rear) | 6° |
Max Outrigger Levelling (Side to Side) | 10° |
Inside Turning Radius | 2.7 m |
Outside Turning Radius | 5.0 m |
Tyres | 27 x 10.5 – 15 non-marking |
Drive System | 4 wheel drive |
Power Source | Kubota D-902 water-cooled diesel, 22.5 hp, Tier 4 Final |
Weight | 3,620 kg |
To contact Equipment Sales Australia about Snorkel S3370RT Rough Terrain Scissor Lift use Get a quote.
Condition | New |
Category | Rough Terrain Scissor Lift |
Model | S3370RT |
Max Working Height | 12.0 m |
Max Platform Height | 10.0 m |
Platform Size (Stowed) | 1.6 m x 2.8 m |
Platform Size (Extended) | 1.6 m x 4.0 m |
Extension Deck Length | 1.2 m |
Overall Width | 1.8 m |
Overall Length | 3.4 m |
Stowed Height | 2.7 m |
Minimum Height (Guardrails Folded) | 2.0 m |
Ground Clearance | 330 mm |
Platform Capacity (SWL) | 454 kg |
Max Drive Height | 10.0 m |
Maximum Wind Speed | 12.5 m/s |
Max Drive Speed (Stowed) | 4.5 km/h |
Max Drive Speed (Elevated) | 0.3 km/h |
Raise/Lower Time | 50/60 seconds |
Gradeability | 35% |
Max Outrigger Levelling (Front to Rear) | 6° |
Max Outrigger Levelling (Side to Side) | 10° |
Inside Turning Radius | 2.7 m |
Outside Turning Radius | 5.0 m |
Tyres | 27 x 10.5 – 15 non-marking |
Drive System | 4 wheel drive |
Power Source | Kubota D-902 water-cooled diesel, 22.5 hp, Tier 4 Final |
Weight | 3,620 kg |
To contact Equipment Sales Australia about Snorkel S3370RT Rough Terrain Scissor Lift use Get a quote.
