High capacity platform with robust 4-wheel drive ideal for rough terrain.

Key Features

Maximum Working Height: 11.8 m
Platform Capacity: 1,134 kg
Spacious roll-out deck extension for enhanced workspace
Excellent ground clearance and tight inside turning radius
Powerful 4-wheel drive for demanding terrains

Specifications

Max Working Height	11.8 m
Max Platform Height	9.8 m
Stowed Platform Size	3.58 m x 2.28 m
Single Deck Extended Size	4.95 m x 2.28 m
Dual Deck Extended Size	6.7 m x 2.28 m
Extension Deck Length	1.44 m
Overall Width	2.28 m
Overall Length (w/o outriggers)	4.08 m
Overall Length (with outriggers)	4.77 m
Stowed Height	2.97 m
Min Height (guardrails folded)	1.98 m
Ground Clearance	274 mm
Platform Capacity (SWL)	1,134 kg
Max Drive Height	9.75 m
Max Wind Speed	12.5 m/s
Max Drive Speed (stowed/elevated)	6.7 / 0.8 km/h
Raise/Lower Time	45/30 seconds
Gradeability	50%
Max Stabiliser Levelling (front-rear/side-side)	7° / 12°
Inside/Outside Turning Radius	2.03 m / 5.28 m
Tyres	12 x 33 foam filled
Controls	Proportional joystick
Drive System	4-wheel drive
Power Source	Kubota diesel
Weight (w/o outriggers/with outriggers)	6,759 kg / 7,401 kg

Standard Features

4-wheel drive
Single powered deck extension
Foam filled tyres
Proportional controls
Power line to platform
Platform overload system
Drive motion and descent alarm
Fold-down guardrails
Flashing amber lights (x2)
Locking, oscillating axle
Hour meter & on-board diagnostics display
Manual lowering valve
Dual lanyard attachment points
2 years parts & labour, 5 year structural warranty (whichever comes first)

Designed for rough and demanding worksites, this scissor lift is ideal for outdoor construction, maintenance and installation tasks where safe elevation, stability, and high load-carrying platform are needed.

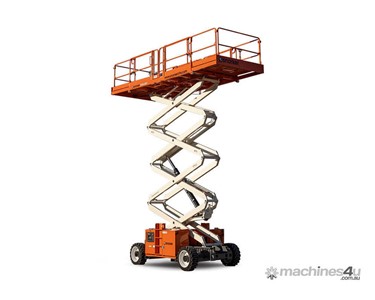

To contact Equipment Sales Australia about Snorkel S9033RT Rough Terrain Scissor Lift use Get a quote.
