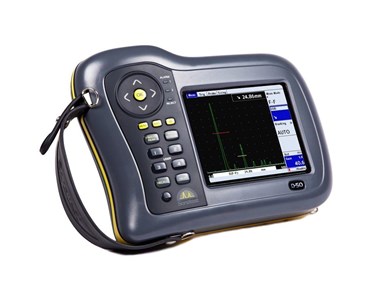

Sonatest Sitescan D-50 Digital Ultrasonic Flaw Detector

The Sonatest Sitescan D-50 is an entry-level broadband digital ultrasonic flaw detector. Ideal for weld inspections, corrosion monitoring, and casting/forging evaluations.

The Sonatest Sitescan D-50 delivers reliable, technician-focused ultrasonic flaw detection in a compact and portable package. Built on Sonatest’s established D-Series platform, the Sitescan D-50 combines robust field durability with advanced signal processing capabilities, making it a go-to instrument for NDT service providers and in-house inspection teams.

Equipped with a high-resolution transflective VGA display, the unit ensures maximum readability across all lighting conditions, from bright direct sunlight to dark enclosed vessel interiors.

Integrated Defect Sizing & Software Options

The Sitescan D-50 incorporates user-friendly defect sizing tools to streamline inspection workflows and speed up analysis:

Standard DAC Curves: Supports up to 20 reference points (compliant with EN1714, ASME, and JIS standards) with dynamic range extension.
Optional Advanced Sizing Modes: Upgradeable software packages for AVG/DGS, AWS D1.1 structural welding, API 5UE, TCG (Time Corrected Gain), and Backwall Echo Attenuation (BEA).
Corrosion Thickness Logging: Advanced 2D grid logging software for comprehensive corrosion monitoring and asset integrity management.

Field-Proven Reliability

Constructed using impact-resistant automotive materials with environmental sealing against water and dust, the Sitescan D-50 is engineered to withstand extreme field conditions, operate at ambient temperatures above 55°C, and perform reliably over a full 10.5-hour shift.

Key Features

Customisable & Intuitive Interface: Quick-access keys and easy-to-navigate menus for fast setup and calibration.
Broadband Performance: Frequency range covering 1.0 MHz to 14 MHz for high signal clarity across varied materials.
Active Peak Memory: Retains echo-dynamic patterns on screen in a separate colour for fast analysis.
Auto-Cal Feature: Automatic velocity and probe zero calculation using two reference echoes.
UT-Lity Data Management: Includes Sonatest UT-Lity software for viewing, managing, and exporting A-Scans, B-Scans, and calibration files to PC.
Flexible Connections: Available with BNC or LEMO 1 transducer connectors, plus USB and encoder inputs.

Technical Specifications

Specification	Details
Test Range	1 mm to 10,000 mm (0.04" to 394") in steel
Velocity Range	1,000 m/s to 10,000 m/s continuously variable
Gain Adjustment	0 to 110 dB (adjustable in 0.5, 1, 2, 6, 10, 14, and 20 dB steps)
Pulser	200 V fixed, 50 nS spike pulser
PRF (Pulse Repetition Freq.)	Adjustable 35 Hz to 1,000 Hz
Frequency Range	1.0 MHz to 14 MHz (-3 dB)
Display	Colour Transflective VGA (640 x 480) TFT display
Gates	2 independent gates for measurement and monitoring (with visual/audible alarms)
Rectification	RF, Full Wave, Positive Half-Wave, Negative Half-Wave
Internal Memory	4 GB storage (~200,000 A-Logs, 450,000 Panels, 300,000 B-Charts)
Battery Life	Rechargeable Li-Ion pack providing up to 10.5 hours
Enclosure & Protection	Impact-resistant automotive-grade casing; water/dust resistant
Dimensions & Weight	238 mm x 172 mm x 70 mm; Weight: 1.3 kg (including battery)
Connectors	BNC or LEMO 1 (factory option); LEMO 4-pin encoder input; USB connection

Applications & Industry Use Cases

Weld Fabrication & Inspection: Structural steel, pressure piping, and vessel welds (ASME / AWS compliance).
Corrosion Mapping: Wall thickness monitoring and remaining life assessment in pipelines and storage tanks.
Forgings & Castings: Flaw detection and void analysis in heavy engineering components.
General Industrial UT: Aerospace, rail, and infrastructure maintenance inspections.

Field-Proven Reliability

Key Features

Customisable & Intuitive Interface: Quick-access keys and easy-to-navigate menus for fast setup and calibration.
Broadband Performance: Frequency range covering 1.0 MHz to 14 MHz for high signal clarity across varied materials.
Active Peak Memory: Retains echo-dynamic patterns on screen in a separate colour for fast analysis.
Auto-Cal Feature: Automatic velocity and probe zero calculation using two reference echoes.
UT-Lity Data Management: Includes Sonatest UT-Lity software for viewing, managing, and exporting A-Scans, B-Scans, and calibration files to PC.
Flexible Connections: Available with BNC or LEMO 1 transducer connectors, plus USB and encoder inputs.

Technical Specifications

Specification	Details
Test Range	1 mm to 10,000 mm (0.04" to 394") in steel
Velocity Range	1,000 m/s to 10,000 m/s continuously variable
Gain Adjustment	0 to 110 dB (adjustable in 0.5, 1, 2, 6, 10, 14, and 20 dB steps)
Pulser	200 V fixed, 50 nS spike pulser
PRF (Pulse Repetition Freq.)	Adjustable 35 Hz to 1,000 Hz
Frequency Range	1.0 MHz to 14 MHz (-3 dB)
Display	Colour Transflective VGA (640 x 480) TFT display
Gates	2 independent gates for measurement and monitoring (with visual/audible alarms)
Rectification	RF, Full Wave, Positive Half-Wave, Negative Half-Wave
Internal Memory	4 GB storage (~200,000 A-Logs, 450,000 Panels, 300,000 B-Charts)
Battery Life	Rechargeable Li-Ion pack providing up to 10.5 hours
Enclosure & Protection	Impact-resistant automotive-grade casing; water/dust resistant
Dimensions & Weight	238 mm x 172 mm x 70 mm; Weight: 1.3 kg (including battery)
Connectors	BNC or LEMO 1 (factory option); LEMO 4-pin encoder input; USB connection

Applications & Industry Use Cases

Weld Fabrication & Inspection: Structural steel, pressure piping, and vessel welds (ASME / AWS compliance).
Corrosion Mapping: Wall thickness monitoring and remaining life assessment in pipelines and storage tanks.
Forgings & Castings: Flaw detection and void analysis in heavy engineering components.
General Industrial UT: Aerospace, rail, and infrastructure maintenance inspections.

Read less...

To contact Cebeco about Sonatest Sonatest Sitescan D-50 Digital Ultrasonic Flaw Detector use Get a quote.

Sonatest Sitescan D50 and 500S Data Sheet(4.62MB)
