Spectroline - Spectro-UV AccuMAX Digital Light Meter (XRP-3000)

Supplier: Cebeco

Spectro-UV AccuMAX Digital Light Meter (XRP-3000)

Dual-sensor digital radiometer/photometer for NDT, measuring UV-A and visible light simultaneously. ASTM/MIL compliant, NIST-traceable, ±5% accuracy — built for MPI, FPI and radiographic inspection work in the field or factory.

Dual UV/Visible sensor

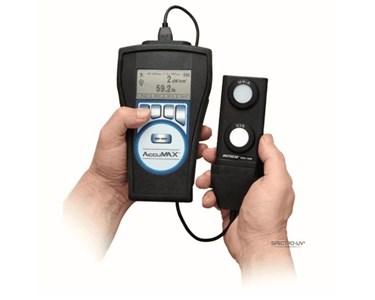

The Spectro-UV AccuMAX XRP-3000 is a microprocessor-controlled digital radiometer/photometer purpose-built for non-destructive testing (NDT). It uses a single dual-wavelength sensor (XDS-1000) to simultaneously measure ultraviolet (UV-A) and visible light, giving inspectors fast, reliable readings for magnetic particle (MPI) and fluorescent penetrant (FPI) testing in line with ASTM specifications.

Specifications

Readout unit: 4-digit auto-ranging, 128x64 dot pixel monochrome LCD (2.8 in / 7.1 cm diagonal), backlit
Sampling rate: 7.5 Hz (single sensor) / 15 Hz (dual sensor); read update 2 Hz
Overall accuracy: better than ±5%, referenced to NIST standards
Temperature coefficient: ±0.025%/°C (0–50°C)
Power: two non-rechargeable 9V alkaline batteries (included)
UV-A sensor: 0–100 mW/cm², spectral range 320–400 nm
Visible sensor: 0–5,300 lux (0–500 fc), spectral range 460–675 nm
Readout unit dimensions: 197 x 108 x 32 mm, 360 g
Sensor detector dimensions: 121 x 51 x 22 mm, 100 g
USB cable length: 1.5 m
NSN: 4920-01-590-0962

Features

Microprocessor-controlled readout with dual-wavelength sensor detector
Superior bandpass interference filter and excellent cosine response
Choice of direct or USB connection between sensor and readout unit
Automatic zeroing, signal integration and hold functions
User-selectable, multilingual display (English, French, German, Spanish)
Large, easy-to-read backlit LCD screen
Sealed, liquid- and water-resistant sensor housing with self-sealing ring
Durable polycarbonate housing with removable rubber protective boot
Compact, lightweight, battery-operated for field or factory use
Complies with ASTM specifications for MPI and FPI

Applications

Magnetic Particle Inspection (MPI) and Fluorescent Penetrant Inspection (FPI)
Verifying UV-A intensity and visible (white) light levels at inspection surfaces
Radiographic film viewing and monitor luminance checks (with optional XS-555/L luminance sensor accessory)
General NDT quality assurance in industrial, oil & gas, aerospace and mining environments
Field and in-plant inspection where portable, calibrated light measurement is required

To contact Cebeco about Spectroline Spectro-UV AccuMAX Digital Light Meter (XRP-3000) use Get a quote.

Specifications

Readout unit: 4-digit auto-ranging, 128x64 dot pixel monochrome LCD (2.8 in / 7.1 cm diagonal), backlit
Sampling rate: 7.5 Hz (single sensor) / 15 Hz (dual sensor); read update 2 Hz
Overall accuracy: better than ±5%, referenced to NIST standards
Temperature coefficient: ±0.025%/°C (0–50°C)
Power: two non-rechargeable 9V alkaline batteries (included)
UV-A sensor: 0–100 mW/cm², spectral range 320–400 nm
Visible sensor: 0–5,300 lux (0–500 fc), spectral range 460–675 nm
Readout unit dimensions: 197 x 108 x 32 mm, 360 g
Sensor detector dimensions: 121 x 51 x 22 mm, 100 g
USB cable length: 1.5 m
NSN: 4920-01-590-0962

Features

Microprocessor-controlled readout with dual-wavelength sensor detector
Superior bandpass interference filter and excellent cosine response
Choice of direct or USB connection between sensor and readout unit
Automatic zeroing, signal integration and hold functions
User-selectable, multilingual display (English, French, German, Spanish)
Large, easy-to-read backlit LCD screen
Sealed, liquid- and water-resistant sensor housing with self-sealing ring
Durable polycarbonate housing with removable rubber protective boot
Compact, lightweight, battery-operated for field or factory use
Complies with ASTM specifications for MPI and FPI

Applications

Magnetic Particle Inspection (MPI) and Fluorescent Penetrant Inspection (FPI)
Verifying UV-A intensity and visible (white) light levels at inspection surfaces
Radiographic film viewing and monitor luminance checks (with optional XS-555/L luminance sensor accessory)
General NDT quality assurance in industrial, oil & gas, aerospace and mining environments
Field and in-plant inspection where portable, calibrated light measurement is required

Read less...

To contact Cebeco about Spectroline Spectro-UV AccuMAX Digital Light Meter (XRP-3000) use Get a quote.

AccuMAX XRP-3000 Datasheet(1.54MB)
