WAM - Lump Breaking Feeder Valves LBC Get latest price

Read more...

To contact WAM Australia Pty Ltd about WAM Lump Breaking Feeder Valves LBC use Get a quote.

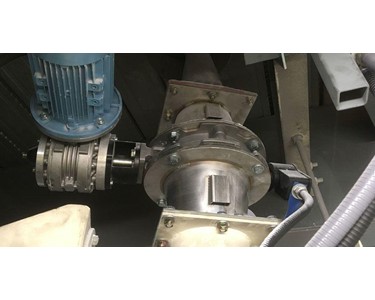

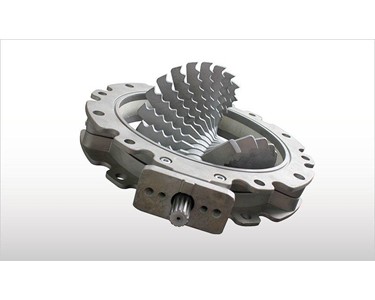

The device consists of a solid cylindrical body with inlet and outlet flange, an integrated crushing tool driven by a side-located electric motor and a rigid grid. To adjust to the required particle size both blades and grid are easily removable to be adapted according to the desired material characteristics.

Function: The Lump Breaking Feeder Valve is fed with agglomerated solids which, after being crushed are discharged through the outlet towards further processing. The LBC is the ideal solution to break up snow-ball-like materials. It is particularly suitable for hygroscopic materials and those that are compacted under pressure, such as sugar, salt, silicates, chemicals, and food products in general. The LBC Lump Breaking Feeder Valve can be fitted in loading and/or discharging pipes, for emptying or filling drums, bins, or screw conveyors.

Features:

• Cylindrical connection
• Single shaft configuration
• Replaceable blades
• Easy to disassemble and clean

Benefits:

• Compact design for easy maintenance
• Segregation without particle degradation
• Enhanced material quality
• Improved material flow
• Increased energy efficiency
• Cost-effective operation

Options:

• Food-grade version
• Connecting spigot
