ADH Machine Tool - CNC Panel Bender for Sheet Metal & Enclosure Manufacturing

Supplier: Koenig Machinery

CNC Panel Bender for Sheet Metal & Enclosure Manufacturing

Automatically bend complex sheet metal parts with speed and accuracy. The CNC Panel Bender reduces manual handling, improves consistency, and increases production efficiency for enclosure, cabinet, and fabrication manufacturers.

Automated High-Speed Panel Bending

CNC Panel Bender – Automated Sheet Metal Bending for Modern Manufacturing

The CNC Panel Bender is designed for high-efficiency sheet metal production where accuracy, repeatability, and reduced labour dependency are critical. Ideal for enclosure manufacturing, electrical cabinets, HVAC components, and general fabrication, it delivers consistent bending quality across complex parts.

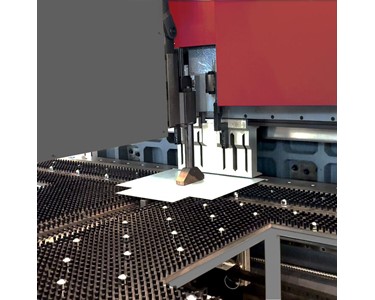

Unlike traditional press brakes, the panel bender automates positioning and bending processes, reducing setup time and improving production flow. Multi-axis CNC control enables complex bends to be completed in fewer operations while maintaining high precision.

Built with a high-grade cast machine body and servo-driven systems, the machine provides stable performance in continuous production environments.

Key Features

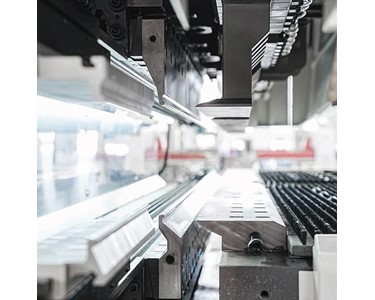

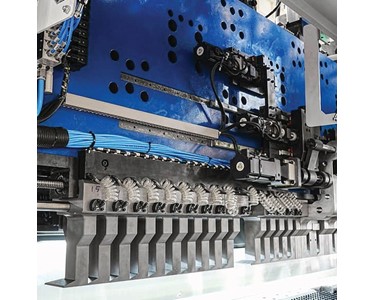

Automatic tool changing system for multiple bend profiles
Multi-axis CNC control for complex part processing
Servo-driven positioning for high accuracy and repeatability

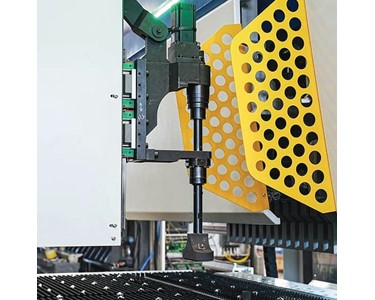

Omnidirectional workpiece positioning system
Automatic lubrication and precision ball screw components
High rigidity cast structure for long-term stability
Optional robotic loading and unloading integration
Suitable for steel, stainless steel, aluminium and coated materials

Why Choose a CNC Panel Bender?

Panel bending technology reduces reliance on operator skill while increasing throughput and consistency. For manufacturers producing repeated parts or complex folded components, it significantly improves efficiency compared to traditional bending methods.

Typical users include:

Electrical enclosure manufacturers
Sheet metal fabrication workshops
HVAC manufacturers
Cabinet and switchboard builders
Contract manufacturing operations

Designed for modern production environments, the CNC Panel Bender helps businesses increase output while maintaining consistent quality across every part.

Technical Specifications – Automatic Panel Bender Series

Specification	Unit	A16	A21	A26
Bend Length	mm	1630	2190	2610
Bend Height	mm	180	180	180
Min Size (Four-Sided Forming)	mm	370 / 180	370 / 180	370 / 180
Min Size (Two-Sided Forming)	mm	180	180	180
Min Bend Height	mm	4	6	6
Min Arc Radius	mm	4	4	4
Max Diagonal	mm	2300	2850	3200
Bending Speed	s/bend	0.2	0.2	0.2
Number of Axes	—	22	22	22
Bending Thickness – Cold Plate	mm	2	2	2
Bending Thickness – Stainless Steel	mm	1.5	1.5	1.5
Bending Thickness – Aluminium	mm	3.5	3.5	3.5
Bending Thickness – Galvanized Plate	mm	2	2	2
Bending Thickness – Hot-Rolled Plate	mm	2	2	2
X-Axis Travel	mm	150	150	150
Z-Axis Travel	mm	230	230	230
U-Axis Travel	mm	1000	1300	1500
Y-Axis Travel	mm	300	300	300
Feeding Structure	—	Press Arm	Press Arm	Press Arm
Maximum Feeding Speed	m/min	0.8	0.8	0.8
Tool Change Method	—	Automatic	Automatic	Automatic
Upper & Lower Sub-Tools	—	Optional	Optional	Optional
Workbench Structure	—	Brush & Ball Transfer Unit	Brush & Ball Transfer Unit	Brush & Ball Transfer Unit
Total Power	kW	44	89	118
Peak Power	kW	26	50	76
Overall Dimensions (L×W×H)	mm	4550 × 2750 × 2750	5400 × 3650 × 2950	6200 × 4100 × 3350
Total Weight	Ton	10	19	24

CNC Panel Bender – Automated Sheet Metal Bending for Modern Manufacturing

Built with a high-grade cast machine body and servo-driven systems, the machine provides stable performance in continuous production environments.

Key Features

Automatic tool changing system for multiple bend profiles
Multi-axis CNC control for complex part processing
Servo-driven positioning for high accuracy and repeatability
Omnidirectional workpiece positioning system
Automatic lubrication and precision ball screw components
High rigidity cast structure for long-term stability
Optional robotic loading and unloading integration
Suitable for steel, stainless steel, aluminium and coated materials

Why Choose a CNC Panel Bender?

Typical users include:

Electrical enclosure manufacturers
Sheet metal fabrication workshops
HVAC manufacturers
Cabinet and switchboard builders
Contract manufacturing operations

Designed for modern production environments, the CNC Panel Bender helps businesses increase output while maintaining consistent quality across every part.

Technical Specifications – Automatic Panel Bender Series

Specification	Unit	A16	A21	A26
Bend Length	mm	1630	2190	2610
Bend Height	mm	180	180	180
Min Size (Four-Sided Forming)	mm	370 / 180	370 / 180	370 / 180
Min Size (Two-Sided Forming)	mm	180	180	180
Min Bend Height	mm	4	6	6
Min Arc Radius	mm	4	4	4
Max Diagonal	mm	2300	2850	3200
Bending Speed	s/bend	0.2	0.2	0.2
Number of Axes	—	22	22	22
Bending Thickness – Cold Plate	mm	2	2	2
Bending Thickness – Stainless Steel	mm	1.5	1.5	1.5
Bending Thickness – Aluminium	mm	3.5	3.5	3.5
Bending Thickness – Galvanized Plate	mm	2	2	2
Bending Thickness – Hot-Rolled Plate	mm	2	2	2
X-Axis Travel	mm	150	150	150
Z-Axis Travel	mm	230	230	230
U-Axis Travel	mm	1000	1300	1500
Y-Axis Travel	mm	300	300	300
Feeding Structure	—	Press Arm	Press Arm	Press Arm
Maximum Feeding Speed	m/min	0.8	0.8	0.8
Tool Change Method	—	Automatic	Automatic	Automatic
Upper & Lower Sub-Tools	—	Optional	Optional	Optional
Workbench Structure	—	Brush & Ball Transfer Unit	Brush & Ball Transfer Unit	Brush & Ball Transfer Unit
Total Power	kW	44	89	118
Peak Power	kW	26	50	76
Overall Dimensions (L×W×H)	mm	4550 × 2750 × 2750	5400 × 3650 × 2950	6200 × 4100 × 3350
Total Weight	Ton	10	19	24
