Panel Saw | Explora Cut Pro S F

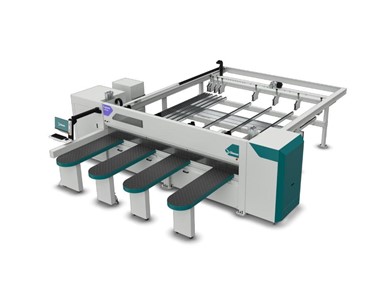

Biesse Explora Cut Pro S F Panel Saw

Elevate your performance and experience in sizing slabs
The single-cut panel saw machine dedicated to medium-big companies for empowering the production with maximum precision.

Explora Cut Pro S F is the high-end single-cut panel saw equipped with a numerically controlled auxiliary push system. Designed to offer maximum precision, efficiency and quality in machining, it is intended for companies that want to do medium to large production runs.

Zero-time blade changing.
The quick blade change system (patented) offers a very fast tool-changing system.
At the touch of a button, the operator can effortlessly change blades, eliminating the need for extra tools or complex procedures.

Two is better that one.
The double presser device (the one on the part to be cut and the other one behind the saw blade) increases the suction capacity of the extraction hood, specially making trim cuts, and at the same time improves the cutting quality.

Longer life with dust protections.
Cables are protected by a cable chain; the saw carriage is equipped with removable guards for easy maintenance. All intake ports have pneumatic valves that open and close automatically according to the cutting pattern.
The cutting line closure system prevents trim from falling down, reducing the risk of damage to moving parts and decreasing the need for maintenance and cleaning, thus increasing machine uptime.
Furthermore, this system increases the cutting quality of both single sheets and panel packs due to the electronic clamping pressure adjustment feature. in addition to rack-and-pinion transmission on both sides allows perfect parallelism, thus maximum adherence on the cutting surface.
Super effective in trimming both tails and heads of the stripes.

Perfect alignment before final cuts.
Side aligner on the saw carriage automatically intervening before every crosscut to ensure the perfect alignment of the final piece to be machined.
The system built into the saw carriage automatically pre-positions itself according to the width of the strip to be sectioned, ensuring perfect squaring and preserving the quality of the sides of thin sheets and plates.

Working the sensitive materials is not a problem.
Working with "sensitive" materials is not a problem. The motorized positioning of the presser unit and the electronic adjustment of the clamp closing pressure, performed directly by the numerical control, eliminate any minimum operating pressure limits, ensuring excellent handling of materials that are easily damaged by pressure.

Fast and precise positioning of blades.
The saw carriage features two independent slides for the main and scoring blades, each driven by its own motor, with the blade unit motor automatically controlled by an inverter, providing up to 37 KW of power.

More stripes at once.
The continuous phenolic ply loading table allows narrow strips supported by the pusher to be handled, increasing the number of strips that can be processed at a time.

Energy saving mode.
With the simple press of a button, which can be activated in any programming environment, the machine automatically switches to stand-by mode after a set period of inactivity, providing the right amount of consumption at each working condition.?
