Magnetic & Electromagnetic Flow Meter Suppliers

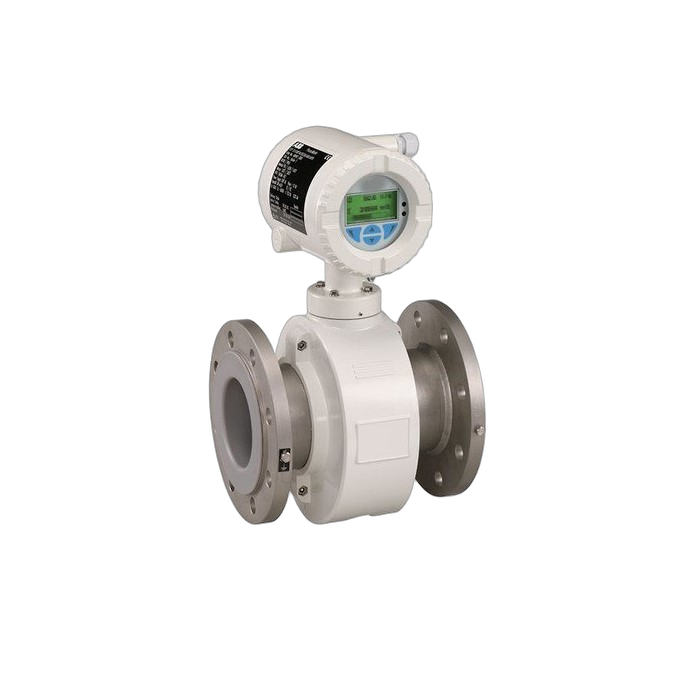

A magnetic flow meter is a type of flow meter that measures the flow rate of a fluid by using a magnetic field to induce a voltage in the fluid. The meter consists of a flow tube, which is lined with a non-conductive material, and two electrodes that are placed perpendicular to the flow of the fluid. A magnetic field is applied to the flow tube, and as the fluid flows through the tube, it generates a voltage that is proportional to the velocity of the fluid. This voltage is then measured by the electrodes and used to calculate the flow rate of the fluid. Magnetic flow meters are commonly used in industries such as water treatment, chemical processing, and food and beverage production.

Magnetic flow meters have several advantages over other types of flow meters:

• High accuracy: Magnetic flow meters are highly accurate and can measure flow rates with an accuracy of ±0.5% or better.
• No moving parts: Magnetic flow meters do not have any moving parts, which makes them more reliable and less prone to wear and tear.
• Wide range of applications: Magnetic flow meters can be used to measure the flow of a wide range of liquids, including corrosive and abrasive fluids.
• Low pressure drop: Magnetic flow meters have a low pressure drop, which means they do not impede the flow of the fluid being measured.
• Easy to install: Magnetic flow meters are easy to install and require minimal maintenance.
• No obstruction to flow: Magnetic flow meters do not obstruct the flow of the fluid being measured, which means they can be used in applications where other flow meters would cause a blockage.

Bi-directional flow measurement: Magnetic flow meters can measure flow in both directions, which makes them ideal for applications where the flow direction may change.

There are several types of magnetic flow meters available in Australia, including insertion flow meters, full-bore flow meters, and low-flow meters. Insertion flow meters are designed to be inserted into an existing pipeline, while full-bore flow meters are installed directly into the pipeline. Low-flow meters are used for applications with low flow rates. Additionally, there are also portable magnetic flow meters that can be used for temporary flow measurement.

When choosing a magnetic flow meter for your application, there are several factors to consider:

• Flow rate: The flow rate of the liquid being measured is an important factor to consider when selecting a magnetic flow meter. The meter should be able to accurately measure the flow rate of the liquid at the required range.
• Pipe size: The size of the pipe in which the magnetic flow meter will be installed is another important factor to consider. The meter should be compatible with the pipe size to ensure accurate measurement.
• Liquid type: The type of liquid being measured is also important. Magnetic flow meters are suitable for measuring conductive liquids, so if the liquid is non-conductive, a different type of flow meter may be required.
• Accuracy: The accuracy of the magnetic flow meter is another important factor to consider. The meter should be able to provide accurate measurements within the required range.
• Installation: The installation of the magnetic flow meter is also important. The meter should be installed in a location that is easily accessible for maintenance and calibration.
• Cost: The cost of the magnetic flow meter is also a factor to consider. The meter should be cost-effective and provide value for money.

Environmental factors: The environmental factors such as temperature, pressure, and humidity should also be considered when selecting a magnetic flow meter. The meter should be able to operate under the environmental conditions of the application.

The accuracy range of magnetic flow meters is typically between ±0.5% to ±1% of the measured flow rate. However, this can vary depending on factors such as the size of the meter, the type of fluid being measured, and the quality of the installation.

The maximum flow rate that a magnetic flow meter can measure depends on the size and type of the meter, as well as the fluid being measured. Generally, magnetic flow meters can measure flow rates ranging from a few liters per hour to tens of thousands of liters per minute. However, some larger meters can measure flow rates up to millions of liters per minute. It is important to consult the manufacturer's specifications for the specific meter being used to determine its maximum flow rate capabilities.

The minimum flow rate that a magnetic flow meter can measure depends on various factors such as the size of the meter, the sensitivity of the sensor, and the viscosity of the fluid being measured. However, in general, magnetic flow meters can measure flow rates as low as 0.1 liters per minute (LPM) or even lower. Some high-precision meters can measure flow rates as low as 0.001 LPM.

The installation process for a magnetic flow meter involves several steps. First, the meter should be mounted in a location that is easily accessible and where the flow of liquid is consistent. Next, the pipe should be prepared by cleaning and removing any debris or obstructions. The meter should then be inserted into the pipe and secured in place using bolts or clamps. The wiring should be connected to the meter and the power source, and the meter should be calibrated to ensure accurate readings. Finally, the system should be tested to ensure that the meter is functioning properly and providing accurate measurements.

However, some basic maintenance tasks include cleaning the electrodes and ensuring that the flow meter is properly grounded. It is also important to periodically check the calibration of the meter and make any necessary adjustments. Additionally, the flow meter should be inspected regularly for any signs of damage or wear and tear.

However, magnetic flow meters are generally more expensive than other types of flow meters such as turbine or positive displacement meters. This is because they use advanced technology and materials such as non-conductive liners and electrodes, which increase their accuracy and reliability. However, magnetic flow meters have several advantages over other types of flow meters, including their ability to measure the flow of conductive and non-conductive fluids, their low maintenance requirements, and their resistance to corrosion and abrasion.
