Cygnus Instruments - Cygnus 6+ PRO Ultrasonic Thickness Gauge

Supplier: Cebeco

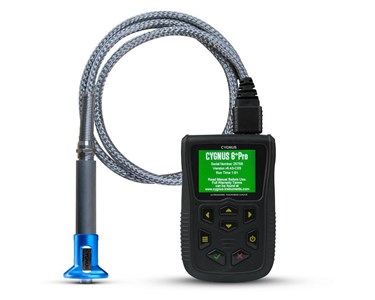

Cygnus 6+ PRO Ultrasonic Thickness Gauge

Cygnus 6+ PRO is a rugged, high-performance ultrasonic thickness gauge featuring multiple measurement modes, live A-scan display and data logging. Designed for accurate metal thickness testing in harsh industrial environments

Video for Cygnus Instruments Cygnus 6+ PRO Ultrasonic Thickness Gauge

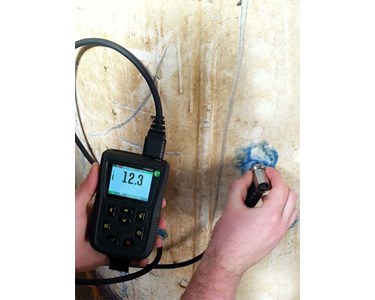

Through coating measurement of metals

The Cygnus 6+ PRO is a professional-grade multi-mode ultrasonic thickness gauge designed for accurate, versatile material thickness measurement in demanding industrial environments. It combines advanced measurement technology with comprehensive data handling in a rugged, field-ready package.

Features:

Three measuring modes – Multiple-Echo for through-coating accuracy, Echo-Echo and Single-Echo for corroded or uncoated surfaces.
Live A-scan & B-scan displays – Visual waveform and cross-section views support measurement verification.
Deep-Coat capability – Measures through coatings up to ~20 mm thick without removal.
Comprehensive data logging – Stores thousands of readings (including A-scans), with templates, grid and radial logging options, USB/Bluetooth transfer via CygLink software.
Rugged build – IP67 sealed and MIL-STD-810G tested for dust, water, shock and vibration resilience.
Dual displays – Large front LCD plus end-mounted display with grayscale for sunlight readability.
Gain control & MSI™ – Automatic and manual gain options with Measurement Stability Indicator for reliable readings.
Additional functions – Min/max limits with alerts, one/two-point calibration, freeze function and automatic probe recognition.

Specifications:

Measurement range (steel): approx. 3 – 250 mm (0.031 – 10 in) depending on probe.
Resolution: Multiple-Echo ~0.002 in; Single/Echo-Echo ~0.001-0.005 in.
Accuracy: ±0.002 in (Multiple-Echo) or ±0.1% of reading.
Display: 2.4″ front LCD and end-mounted screen.
Power: 3 × AA batteries (~10 hrs).
Weight: ~300 g (incl. batteries).
Environmental: IP67 and MIL-STD-810G rated.

Applications:

Corrosion monitoring
Pipeline inspection
Vessel/thickness surveys in oil & gas
Maritime inspections
Manufacturing

To contact Cebeco about Cygnus Instruments Cygnus 6+ PRO Ultrasonic Thickness Gauge use Get a quote.

Features:

Three measuring modes – Multiple-Echo for through-coating accuracy, Echo-Echo and Single-Echo for corroded or uncoated surfaces.
Live A-scan & B-scan displays – Visual waveform and cross-section views support measurement verification.
Deep-Coat capability – Measures through coatings up to ~20 mm thick without removal.
Comprehensive data logging – Stores thousands of readings (including A-scans), with templates, grid and radial logging options, USB/Bluetooth transfer via CygLink software.
Rugged build – IP67 sealed and MIL-STD-810G tested for dust, water, shock and vibration resilience.
Dual displays – Large front LCD plus end-mounted display with grayscale for sunlight readability.
Gain control & MSI™ – Automatic and manual gain options with Measurement Stability Indicator for reliable readings.
Additional functions – Min/max limits with alerts, one/two-point calibration, freeze function and automatic probe recognition.

Specifications:

Measurement range (steel): approx. 3 – 250 mm (0.031 – 10 in) depending on probe.
Resolution: Multiple-Echo ~0.002 in; Single/Echo-Echo ~0.001-0.005 in.
Accuracy: ±0.002 in (Multiple-Echo) or ±0.1% of reading.
Display: 2.4″ front LCD and end-mounted screen.
Power: 3 × AA batteries (~10 hrs).
Weight: ~300 g (incl. batteries).
Environmental: IP67 and MIL-STD-810G rated.

Applications:

Corrosion monitoring
Pipeline inspection
Vessel/thickness surveys in oil & gas
Maritime inspections
Manufacturing

Read less...

To contact Cebeco about Cygnus Instruments Cygnus 6+ PRO Ultrasonic Thickness Gauge use Get a quote.

Cygnus 6-Plus PRO - 2025(0.54MB)
