Cygnus Instruments - NEW Cygnus Underwater Thickness Gauge Get latest price

Read more...

To contact Cebeco about Cygnus Instruments NEW Cygnus Underwater Thickness Gauge use Get a quote.

Features

• 3 Measuring Modes: Includes Multiple-Echo for verified through-coating readings (up to 20 mm), Single-Echo, and Echo-Echo for heavily corroded metals.

• Live A-Scan Verification: Provides visual A-scan graphics directly on screen to confirm valid measurement echo signals.

• Integrated Depth Sensor: Live depth display tags real-time depth data directly to each thickness reading.

• Measurement Stability Indicator (MSI™): Gives clear visual confirmation when a reading is stable during Single-Echo and Echo-Echo modes.

• Deep Coat Function: Ignores thick surface coatings up to 20 mm.

• Simple 3-Button Interface: Designed for easy navigation underwater with up to 4 clear display screen layouts.

• Comprehensive Data Logging: Captures linear and 2D grid patterns with up to 5,000 measurement points per record, including A-scans and depth logs.

• Auto-Set Gain & Real-Time Clock (RTC): Optimizes transducer performance automatically and logs date/time timestamps for seamless reporting via CygLink software.

?

Specifications

• Measuring modes: Single Echo (twin crystal probes), Echo-Echo (twin crystal probes), Multiple Echo (single crystal probes)
• Materials: Sound velocity range 2000–9000 m/s (0.0787–0.3543 in/µs)
• Accuracy: ±0.1 mm (±0.004") or 0.1% of thickness reading, whichever is greater
• Resolution: 0.1 mm, 0.05 mm or 0.01 mm, depending on probe
• Measurement range in steel: 1–250 mm (0.040–10 in.), depending on probe, configuration, material and temperature
• Probe options: Single crystal and twin crystal (Lemo sockets)
• Connector: SubConn MC
• Power supply: Ni-MH battery pack, 1.8 Ah minimum
• Battery life: 8 hours minimum continuous measurement
• Display: 2.4" VGA, sunlight-readable colour screen
• Size: 80 x 305 x 65 mm (W x L x D)
• Weight: 1 kg with battery
• Operating temperature: -10°C to +50°C
• Storage temperature: -20°C to +60°C
• Data logging: 5,000 measurements and A-scans per record
• Depth sensor: 0–300 m (30 Bar) range
• Environmental protection: Rated for 300 m continuous immersion in sea water; tested to MIL-STD-810G for high/low temperature
• Shock & impact: Tested to MIL-STD-810G for vibration, shock (20g) and transit drop (1.22 m)
• Standards: Designed to BS EN 15317; RoHS compliant
• Warranty: 3 years on the gauge, 6 months on the probe

Applications

• Hull UTM Inspections: Conduct UWILD and IWS class survey inspections on ship hulls and marine vessels.

• Offshore Platforms: Structural integrity checks on jacket legs, risers, and offshore oil/gas installations.

• Subsea Pipelines & Outfalls: Pipe wall thickness monitoring, including anchor chain link and outfall pipe surveys.

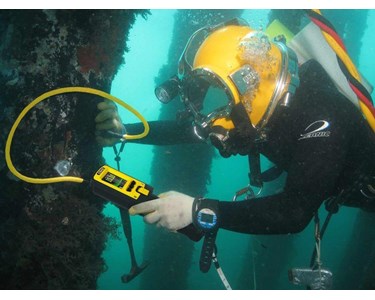

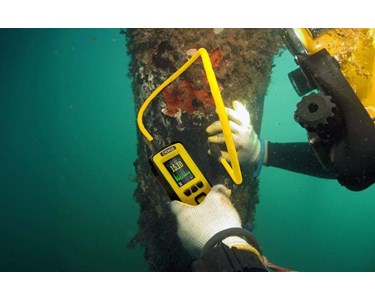

• Civil Engineering & Infrastructure: Ultrasonic inspection on bridge pilings, jetties, harbour walls, and lock gates.
