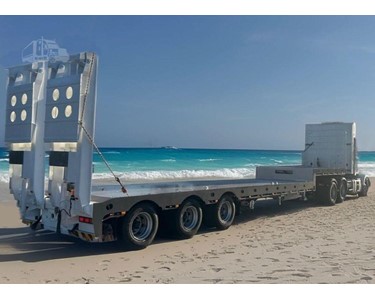

Drop Deck Trailers 2026 UTA | 13.72 m x 2,495 cm Get latest price

Read more...

To contact UTA Trailers about Drop Deck Trailers 2026 UTA | 13.72 m x 2,495 cm use Get a quote.

SPECIFICATIONS

• TARE WEIGHT: 11.5 Ton
• CONSTRUCTION: High Tensile Steel - 12 SHS 8mm Thick Beams for Widening (Will support up to 30 Ton Machine)
• AXLE TYPE: K-Hitch 11.5 Ton Tri Axle 16mm Wall Thickness with Parallel Bearings
• SUSPENSION TYPE:  K-Hitch Airbag Suspension
• RAMP TYPE: 4-Metre Hydraulic Bi-fold Ramps 11 Degree Loading Angle
• HYDRAULIC MOTOR: Electric Start 10HP Diesel Motor
• DECK HEIGHT: 920mm/990mm
• TOTAL DECK LENGTH: 13700mm
• TOP DECK LENGTH: 3800mm
• BOTTOM DECK LENGTH: 9900mm
• DECK WIDTH: 2500mm Variable to 3500mm
• BRAKING SYSTEM: EBS Braking System with ROPS (Roll Over Protection System)
• WHEELS: 17.5 Steel Rims
• TYRES: 235/70R

FEATURES:

• High Tensile Re-enforced Checker Plate Floor
• JOST 2 Speed Landing Legs
• 2 Position Bolt-In King Pin - 2 or 3 inch
• Wireless Handheld Remote Control
• 3-Way Container Pins and Pedestals - Fit 2 x 20ft or 1 x 40ft Container
• Slide out Ramps to Top Deck
• 34 Chain Bars in-Deck
• 1 x Spare Wheel
• 2 x Tool Boxes
• Dual Wheel Carrier
• Multi Volt LED Lighting System
• 2 Pac Paint Finish (Your Choice of Colour)
• OVER SIZE Road Signage
• Flashing Beacon

OPTIONS:

• 17.5 or 19.5 Steel/Alloy Wheels
• Yanmar Diesel Motor & PTO Power Pack
• 12V Electric Over Hydraulic Power Pack with Anderson Plug to Front
• Road Train Approval
• Ring Feeder
• Lay Flat Ramps

Read less...

To contact UTA Trailers about Drop Deck Trailers 2026 UTA | 13.72 m x 2,495 cm use Get a quote.
