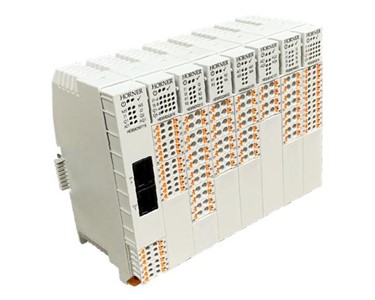

I/O Module | OCS-I/O Modular Remote & Expansion I/O Platform

Supplier: Autech Control Group

A modular CsCAN remote I/O platform, this system offers flexible, expandable I/O solutions for seamless integration with OCS all-in-one controllers.

Video for I/O Module | OCS-I/O Modular Remote & Expansion I/O Platform

Highly expandable modular I/O, supporting local and remote integration up to 500 metres.

Key Features

Modular CsCAN remote I/O platform designed for flexibility and seamless integration with OCS controllers.
Supports both local expansion I/O and remote I/O installations up to 500 metres away.
Expandable: attach up to 7 modules per base and 16 bases per network.
Standard spring-clamp style connectors for reliable and easy wiring.
Requires either CNX100 or CNX116 module as an I/O base for operation.
Firmware updates may be required for newest modules.

Base & Module Options

Module	Description
HE959CNX100	Base, no built-in I/O, up to 7 modules per base
HE959CNX116	Base with 2 Flexible Inputs (Digital or 12-bit Analog), 2 Digital Outputs, 1 Universal 16-bit Analog Input, 1 Analog Output, up to 7 modules per base
HE959ADC270	8 Analog Inputs (16-bit, selectable per channel for 4-20mA or 0-10V)
HE959ADU100	4 Universal Analog Inputs (16-bit, channel selectable for 0-20mA, 4-20mA, 0-10V, PT100/PT1000 RTD, or J/K/T/E/N/R/S/B Thermocouples)
HE959DAC107	4 Analog Outputs (12-bit, selectable for 0-20mA, 4-20mA, or 0-10V)
HE959DIM610	16 Digital DC Inputs (12-24 VDC, positive/negative logic)
HE959DIM620	8 Digital AC Inputs (90-144 VAC, 1 common/module)
HE959DIQ512	4 Digital DC Inputs, 4 Relay Outputs (input logic selectable, up to 3A/relay, 120 VAC)
HE959DIQ616	8 Digital DC Inputs & 8 Digital Outputs (12-24 VDC, inputs: pos/neg logic, outputs: positive)
HE959DQM502	4 Relay Outputs (up to 5A AC/DC, 240 VAC)
HE959DQM602	8 Relay Outputs (up to 2A/relay, 240 VAC)
HE959DQM606	16 Digital DC Outputs (12-24 VDC, positive logic)

Technical Overview

Fieldbus Network: CsCAN for fast, reliable communications
Remote expansion possible up to 500 m distance
Each network can support up to 112 modules (16 bases, 7 modules each)
Spring-type wiring connectors for secure connection
Compatible with specific HE959CNX100 and HE959CNX116 revisions for new module releases

Base Model I/O Matrix

Model Number	Flexible Inputs (Digital/Analog)	Universal Analog Inputs	AC Inputs	Analog Outputs	DC Inputs	DC Outputs	Relay Outputs
HE959CNX100	–	–	–	–	–	–	–
HE959CNX116	2	1	–	1	–	2	–
HE959ADC270	–	8	–	–	–	–	–
HE959ADU100	–	4	–	–	–	–	–
HE959DAC107	–	–	–	4	–	–	–
HE959DIM610	–	–	–	–	16	–	–
HE959DIM620	–	–	8	–	–	–	–
HE959DIQ512	–	–	–	–	4	–	4
HE959DIQ616	–	–	–	–	8	8	–
HE959DQM502	–	–	–	–	–	–	4
HE959DQM602	–	–	–	–	–	–	8
HE959DQM606	–	–	–	–	–	16	–

To contact Autech Control Group about I/O Module | OCS-I/O Modular Remote & Expansion I/O Platform use Get a quote.

Key Features

Modular CsCAN remote I/O platform designed for flexibility and seamless integration with OCS controllers.
Supports both local expansion I/O and remote I/O installations up to 500 metres away.
Expandable: attach up to 7 modules per base and 16 bases per network.
Standard spring-clamp style connectors for reliable and easy wiring.
Requires either CNX100 or CNX116 module as an I/O base for operation.
Firmware updates may be required for newest modules.

Base & Module Options

Module	Description
HE959CNX100	Base, no built-in I/O, up to 7 modules per base
HE959CNX116	Base with 2 Flexible Inputs (Digital or 12-bit Analog), 2 Digital Outputs, 1 Universal 16-bit Analog Input, 1 Analog Output, up to 7 modules per base
HE959ADC270	8 Analog Inputs (16-bit, selectable per channel for 4-20mA or 0-10V)
HE959ADU100	4 Universal Analog Inputs (16-bit, channel selectable for 0-20mA, 4-20mA, 0-10V, PT100/PT1000 RTD, or J/K/T/E/N/R/S/B Thermocouples)
HE959DAC107	4 Analog Outputs (12-bit, selectable for 0-20mA, 4-20mA, or 0-10V)
HE959DIM610	16 Digital DC Inputs (12-24 VDC, positive/negative logic)
HE959DIM620	8 Digital AC Inputs (90-144 VAC, 1 common/module)
HE959DIQ512	4 Digital DC Inputs, 4 Relay Outputs (input logic selectable, up to 3A/relay, 120 VAC)
HE959DIQ616	8 Digital DC Inputs & 8 Digital Outputs (12-24 VDC, inputs: pos/neg logic, outputs: positive)
HE959DQM502	4 Relay Outputs (up to 5A AC/DC, 240 VAC)
HE959DQM602	8 Relay Outputs (up to 2A/relay, 240 VAC)
HE959DQM606	16 Digital DC Outputs (12-24 VDC, positive logic)

Technical Overview

Fieldbus Network: CsCAN for fast, reliable communications
Remote expansion possible up to 500 m distance
Each network can support up to 112 modules (16 bases, 7 modules each)
Spring-type wiring connectors for secure connection
Compatible with specific HE959CNX100 and HE959CNX116 revisions for new module releases

Base Model I/O Matrix

Model Number	Flexible Inputs (Digital/Analog)	Universal Analog Inputs	AC Inputs	Analog Outputs	DC Inputs	DC Outputs	Relay Outputs
HE959CNX100	–	–	–	–	–	–	–
HE959CNX116	2	1	–	1	–	2	–
HE959ADC270	–	8	–	–	–	–	–
HE959ADU100	–	4	–	–	–	–	–
HE959DAC107	–	–	–	4	–	–	–
HE959DIM610	–	–	–	–	16	–	–
HE959DIM620	–	–	8	–	–	–	–
HE959DIQ512	–	–	–	–	4	–	4
HE959DIQ616	–	–	–	–	8	8	–
HE959DQM502	–	–	–	–	–	–	4
HE959DQM602	–	–	–	–	–	–	8
HE959DQM606	–	–	–	–	–	16	–

Read less...

To contact Autech Control Group about I/O Module | OCS-I/O Modular Remote & Expansion I/O Platform use Get a quote.
