Koenig Industrial CO2 Laser for Acrylic, ...

Koenig - Industrial CO2 Laser for Acrylic, Timber & P|astics 1300x900 | K1309C

Supplier: Koenig Machinery

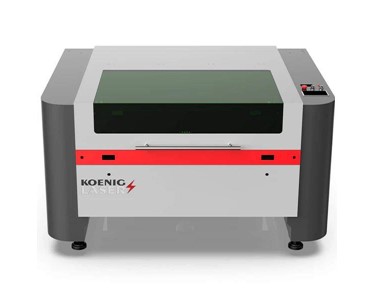

Industrial CO2 Laser for Acrylic, Timber & P|astics 1300x900 | K1309C

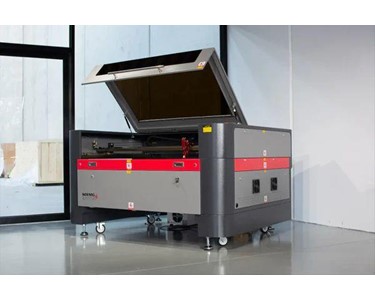

The K1309C is a fully enclosed machine that gives additional safety and protection. You can view your work in action while protecting your eyes from the CO2 laser beam thanks to the clear access lid.

Commercial Acrylic Laser Cutter

Receive 1-3 days from order

1300x900 CO2 Laser Cutter & Engraver

Servo-Driven Commercial Workshop System

The 1300 × 900mm CO2 Laser Cutter is a fully enclosed, production-ready laser system designed for signage workshops, acrylic fabricators and commercial manufacturing environments. Offering a larger working area and higher power capability, it provides the capacity needed for growing businesses without stepping into oversized industrial systems.

Available in 100W or 150W configurations, this machine delivers clean cutting, detailed engraving and dependable performance across a wide range of materials.

Key Features

• 1300 × 900mm cutting area
• 150W RECI CO2 laser tube (100W option available)
• Fully enclosed cabinet design
• Leadshine servo motor drive system
• 4-way feed-through for oversized sheets
• 200mm motorised up-down Z table
• Automatic height-adjust head
• In-line beam combiner for easier mirror setup
• S&A CW5200 refrigerated water chiller included
• Extraction fan and ducting supplied
• RDWorks & LightBurn software licences included
• Hiwin Taiwanese linear rails

Built for Accuracy & Production

• Engraving speeds up to 1000mm/s
• Cutting speeds up to 300mm/s
• Locating accuracy ≤ ±0.01mm
• RECI glass laser tube rated up to 10,000 hours
• 128MB internal file memory

The servo motor drive improves smoothness and positioning accuracy, delivering consistent engraving quality across repeated production runs.

Materials Commonly Processed

• Acrylic (cast and extruded)
• Plywood and MDF
• Timber
• Leather
• Rubber (laser-safe grades)
• Cardboard and paper
• Select plastics

Ideal For

• Signage manufacturers
• Acrylic and display fabricators
• Trophy and awards businesses
• Promotional product suppliers
• Commercial workshops
• Training and technical facilities

Why Choose This Machine?

• Larger bed size for increased throughput
• Strong balance of power and footprint
• Servo-driven motion for smoother engraving
• 4-way feed-through expands job flexibility
• Industrial cooling and extraction included
• Dedicated Australian technical support
• FREE lifetime remote technical support
• 1-year machine warranty + 9-month tube warranty

“A production-capable CO2 laser that delivers strong performance without the cost of full industrial systems.”

Positioned as a Smart Growth Machine

The 1300x900 format is one of the most practical sizes for signage and fabrication businesses. It offers the space and power to scale output while remaining manageable for workshop environments.

Technical Parameters	Specification
Laser Power	100, 150 or 280W
Cutting area	1300*900mm
Z axis	200mm travel - motorised up-down table
Laser Type	RECI CO2 Glass Tube 10.6μm – up to 10,000 hour life
Table type	Knife bed table included (optional honeycomb table available)
Motor Type	Leadshine Precision Servo Motor
Camera	120degree overhead camera – 8Mb
Camera alignment	+/- 0.5mm (calibratable by user)
Ventilation	Fan and extraction hosing provided (4 stage air filters optional)
Cooling Type	S&A CW5200 refrigerating water chiller included
Engraving Speed	Up to 1000mm/s
Cutting Speed	Up to 300mm/s
Min. Engraving Size	1.0mm*1.0mm
Locating Accuracy	≤+0.01mm
Controlling Software	DSP Control System
Software	RDworks and Lightburn – licence included (including print registration mark alignment using “print and cut” feature)
Computer compatibility	Windows, Mac OS, or Linux (32 or 64-bit)
Graphic Format Supported	DXF DWG AI PDF DST PLT BMP JPG PNG etc
Machine file memory	128MB internal memory (up to 100 files)
Power Supply	230V 50Hz 10amp – Standard single phase
OPTIONS	Honeycomb table, Wheel or Chuck Rotary, Air filter, High Powered compressor
Machine footprint	1868(W)1468(D)1090(H)mm
Machine weight	470kg
Packaging Dimensions	2000(W)1660(D)1280mm
Gross weight (in packaging)	520kg

1300x900 CO2 Laser Cutter & Engraver

Servo-Driven Commercial Workshop System

Available in 100W or 150W configurations, this machine delivers clean cutting, detailed engraving and dependable performance across a wide range of materials.

Key Features

Built for Accuracy & Production

• Engraving speeds up to 1000mm/s
• Cutting speeds up to 300mm/s
• Locating accuracy ≤ ±0.01mm
• RECI glass laser tube rated up to 10,000 hours
• 128MB internal file memory

The servo motor drive improves smoothness and positioning accuracy, delivering consistent engraving quality across repeated production runs.

Materials Commonly Processed

• Acrylic (cast and extruded)
• Plywood and MDF
• Timber
• Leather
• Rubber (laser-safe grades)
• Cardboard and paper
• Select plastics

Ideal For

• Signage manufacturers
• Acrylic and display fabricators
• Trophy and awards businesses
• Promotional product suppliers
• Commercial workshops
• Training and technical facilities

Why Choose This Machine?

“A production-capable CO2 laser that delivers strong performance without the cost of full industrial systems.”

Positioned as a Smart Growth Machine

The 1300x900 format is one of the most practical sizes for signage and fabrication businesses. It offers the space and power to scale output while remaining manageable for workshop environments.

Technical Parameters	Specification
Laser Power	100, 150 or 280W
Cutting area	1300*900mm
Z axis	200mm travel - motorised up-down table
Laser Type	RECI CO2 Glass Tube 10.6μm – up to 10,000 hour life
Table type	Knife bed table included (optional honeycomb table available)
Motor Type	Leadshine Precision Servo Motor
Camera	120degree overhead camera – 8Mb
Camera alignment	+/- 0.5mm (calibratable by user)
Ventilation	Fan and extraction hosing provided (4 stage air filters optional)
Cooling Type	S&A CW5200 refrigerating water chiller included
Engraving Speed	Up to 1000mm/s
Cutting Speed	Up to 300mm/s
Min. Engraving Size	1.0mm*1.0mm
Locating Accuracy	≤+0.01mm
Controlling Software	DSP Control System
Software	RDworks and Lightburn – licence included (including print registration mark alignment using “print and cut” feature)
Computer compatibility	Windows, Mac OS, or Linux (32 or 64-bit)
Graphic Format Supported	DXF DWG AI PDF DST PLT BMP JPG PNG etc
Machine file memory	128MB internal memory (up to 100 files)
Power Supply	230V 50Hz 10amp – Standard single phase
OPTIONS	Honeycomb table, Wheel or Chuck Rotary, Air filter, High Powered compressor
Machine footprint	1868(W)1468(D)1090(H)mm
Machine weight	470kg
Packaging Dimensions	2000(W)1660(D)1280mm
Gross weight (in packaging)	520kg
