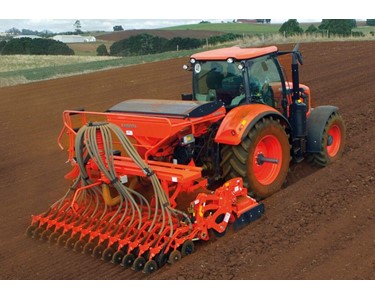

Kubota Seed Drill SD2001MP Series

Kubota - Seed Drill SD2001MP Series

Supplier: Kubota

Seed Drill SD2001MP Series

The Seed Drill SD2001MP Series is engineered for efficient seed bed preparation, precision sowing, and soil recompaction—all in a single pass, ensuring streamlined fieldwork and enhanced crop results.

Overview

Kubota’s SD2100MP Series Seed Drills excel in seed bed preparation, soil recompaction, and precise, single-pass sowing. The design features a spacious 1,100 litre hopper with great cab visibility and user-friendly calibration, along with advanced ELDOS electronic metering for highly accurate seed distribution from 1 to 400 kg per hectare.

Key Features

Unique patented hopper provides excellent cab visibility and easy access for filling and maintenance.
Heavy modules sit directly behind the tractor, reducing lift capacity needs and improving manoeuvrability.
Calibration at the metering device (left side of the machine) with included low-seed sensor.
ELDOS electronic dosing metering system for precise and adjustable sowing rates.
Sowing depth is quickly set via hydraulic spacers, remaining unaffected by power harrow adjustments.
CX-II sowing rows with press wheels for uniform planting.
Centralised sowing depth and hydraulic coulter adjustments from the cab.
Low seed sensor, hopper sieve, tool box, and speed input signal via onboard radar included as standard.
ISOBUS compatibility, with TELLUS PRO or TELLUS GO+ terminals as options.
Robust pressing, harrowing and roller options for all models.

Model Specifications

Name	Working Width	No. of Rows	Row Spacing	Hopper Capacity	Metering Device	Sowing Range
SD2301MP	3 m	24	125 mm	1,100 L	ELDOS	1–400 kg/ha
SD2351MP	3.5 m	28	125 mm	1,100 L	ELDOS	1–400 kg/ha
SD2401MP	4 m	32	125 mm	1,100 L	ELDOS	1–400 kg/ha

Additional Equipment & Compatibility

Works with PH2001 Series Power Harrows (model-matched to drill widths).
Maximum 180 hp PTO; quick-fit carbide tines and packer roller included on all compatible power harrow models.
Rear work lights, internal hopper lights, rear camera, and 5 different seeding rotors as standard extras.

User Experience

Calibration is fast and accessible at the metering device.
All models support tool-free removal of the coulter bar in under five minutes.
Easy access to seed loading and maintenance promotes efficiency in the field.
