Motorised Pipe & Tube Rotary Draw Bender | RDB-250

Supplier: Hare & Forbes Machinery House

Motorised Pipe & Tube Rotary Draw Bender with Rotary Positioning Table - RDB-250 | Ø1/2" - Ø2" NB Pipe Capacity, Ø6.35 - Ø63.5mm Round Tube Capacity | Includes 6096mm (20ft) Rotary Positioning Table - IDX-20-250-M

Receive 1-3 days from order

Overview

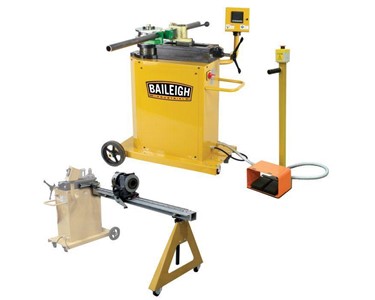

NOTE: Image shown with Optional Tooling.

This compact, programmable tube bender shapes material at blistering speeds with professional accuracy. Made in the USA, the RDB-250 will revolutionise the efficiency of your fabrication shop.

Use this machine for: Creating custom chassis, handrails, boilers, and metal art, among other projects.

Why choose Baileigh’s RDB-250 Tube Bender over competing machines?

Cuts down on time and effort for repeat projects by storing complex bend specifications as programs.
Reduces delays with extremely fast automatic bending.
Accommodates a wide range of tooling, available from Baileigh, to suit almost any application.

Features

Runs on 240-volt single-phase power
Tackles heavy-duty materials, bending up to Ø63.5mm OD tubing and Ø2" NB (5/32", schedule 40) pipe
Rotary draw bender smoothly executes 180° bends in just 9 seconds and can complete up to 360° bends
Internal storage holds up to 170 programs of up to 10 bends per program
Also accepts micro SD memory card to store programs
Easy-to-use touchscreen or handy foot pedal can both operate the bender, when not in manual mode
2-piece die mount loosens to release bent tubing without a hassle

Includes

Foot pedal control with forward & reverse
6096mm (20ft) Rotary Positioning Table - IDX-20-250-M
63.5mm Index Chuck Thru Hole

Overview

Features

Runs on 240-volt single-phase power
Tackles heavy-duty materials, bending up to Ø63.5mm OD tubing and Ø2" NB (5/32", schedule 40) pipe
Rotary draw bender smoothly executes 180° bends in just 9 seconds and can complete up to 360° bends
Internal storage holds up to 170 programs of up to 10 bends per program
Also accepts micro SD memory card to store programs
Easy-to-use touchscreen or handy foot pedal can both operate the bender, when not in manual mode
2-piece die mount loosens to release bent tubing without a hassle

Includes

Foot pedal control with forward & reverse
6096mm (20ft) Rotary Positioning Table - IDX-20-250-M
63.5mm Index Chuck Thru Hole
