Motorised Pipe & Tube Rotary Draw Bender - RDB-350-TS for sale from Hare & Forbes Machinery House

Receive 1-3 days from order

Overview

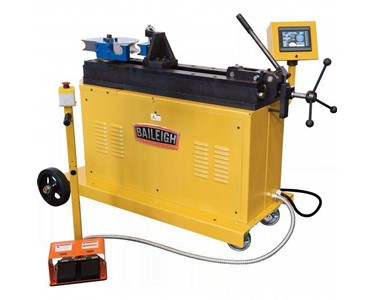

NOTE: Image shown with Optional Tooling.

This tubing bender for sale will stand up to the rigors of any shop—and save you time. The RDB-350-TS industrial tubing bender bends 180° in 16 seconds. And its quick-release die system speeds up production.

Features

Proudly engineered and made in the USA
Capacity of Ø2-1/2" NB (13/64", schedule 40) pipe and Ø76.2mm OD tube with 4.75mm wall thickness
24" (609.6mm) centre line radius maximum
Bends to 360° in one shot, both left and right
You can program the desired angle, material springback, and bend speed for easy repeatability
Programmer can also keep track of rotational orientation
Touchscreen controller designed for user-friendly programming
320° rotation of the controller lets you operate RDB-350-TS from any side of the machine
Internal memory can store up to 170 programs of 10 bends per program
Also accepts micro SD memory card to store programs
Quick-release counter die system allows allows you to load and unload the pipe bender quickly for high production runs
Like all Baileigh tubing benders, the RDB-350-TS is compatible with our standard drop-on tooling. We can also make custom tooling for your application
Accepts a rotary positioning table, available from in several lengths, to achieve accurate bends on varying planes

Includes

Foot pedal control with forward & reverse
