Sonatest - Veo3 Phased Array Ultrasonic Flaw Detector Get latest price

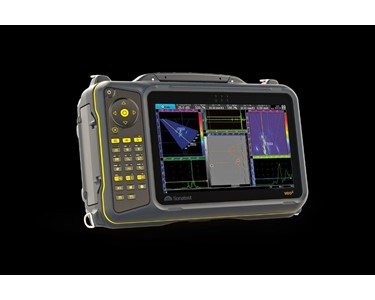

The Sonatest Veo3 is a high-performance portable ultrasonic flaw detector designed for advanced non-destructive testing applications. Combining Phased Array (PA), TOFD and live TFM in a single rugged unit, the Veo3 delivers fast data acquisition, high-resolution imaging and intuitive touchscreen operation for efficient inspections in demanding industrial environments.

Built on a powerful 32:128 PR architecture, the Veo3 offers up to 8 PA scans, 6 live TFM scans and 2 UT/TOFD channels simultaneously. It features a 0.2–23 MHz bandwidth, 125 MHz sampling rate (12-bit with 16-bit processing), up to 1024 focal laws, and S-scan resolution down to 0.1°. The system supports up to 64 elements for live TFM/FMC and delivers up to 500,000 pixels for detailed imaging.

Housed in a robust IP66-rated enclosure with a 10.4″ PCAP touchscreen, 128 GB SSD storage and hot-swappable batteries (approx. 6-hour operation), the Veo3 is engineered for reliability in the field. Advanced reporting tools, 3D scan planning and compliance with ISO and EN standards make it ideal for weld inspection, corrosion mapping and critical asset integrity applications.

To contact Cebeco about Sonatest Veo3 Phased Array Ultrasonic Flaw Detector use Get a quote.

The Sonatest Veo3 is a high-performance portable ultrasonic flaw detector designed for advanced non-destructive testing applications. Combining Phased Array (PA), TOFD and live TFM in a single rugged unit, the Veo3 delivers fast data acquisition, high-resolution imaging and intuitive touchscreen operation for efficient inspections in demanding industrial environments.

Built on a powerful 32:128 PR architecture, the Veo3 offers up to 8 PA scans, 6 live TFM scans and 2 UT/TOFD channels simultaneously. It features a 0.2–23 MHz bandwidth, 125 MHz sampling rate (12-bit with 16-bit processing), up to 1024 focal laws, and S-scan resolution down to 0.1°. The system supports up to 64 elements for live TFM/FMC and delivers up to 500,000 pixels for detailed imaging.

Housed in a robust IP66-rated enclosure with a 10.4″ PCAP touchscreen, 128 GB SSD storage and hot-swappable batteries (approx. 6-hour operation), the Veo3 is engineered for reliability in the field. Advanced reporting tools, 3D scan planning and compliance with ISO and EN standards make it ideal for weld inspection, corrosion mapping and critical asset integrity applications.

Read less...

To contact Cebeco about Sonatest Veo3 Phased Array Ultrasonic Flaw Detector use Get a quote.
