7.0m lift height with 3,500kg capacity and robust Cummins power for versatile material handling.

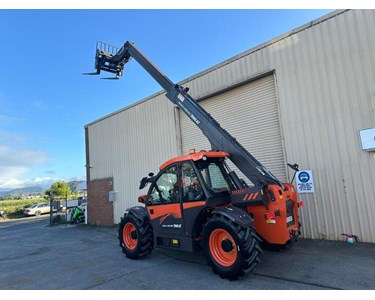

The Reach Wizard 7000AT is a robust 4WD telehandler equipped with a heavy-duty telescopic boom, designed for efficient lifting, stacking, loading, and precise placement of materials. With a rated capacity of 3,500kg and a maximum lift height of 7.0 metres, it is ideal for applications such as stacking pallets, lifting roof trusses, loading trucks, and handling bulk materials on-site.

Main Features

Premium Cummins QSB3.9 turbocharged 4-cylinder diesel engine: 130hp (97kW)
Hydrostatic drive system for smooth, powerful operation
Four-wheel drive and four-wheel steering for tight manoeuvrability
Heavy-duty telescopic boom with smooth hydraulic extension
Reverse cycle air conditioning for comfort in all seasons
Electromagnetic hydraulic pilot control & auxiliary hydraulic outputs for attachments
Load management system for safety
Service kit and tool box included
Spring-applied parking brake and heavy-duty service brakes
Integrated gauges and warning lights for operational monitoring
CNC manufacturing and electrophoresis paint process for rust protection and finish
Heat-treated pins and greaseable bronze bushes for extended service life
Multiple tie down, lift hook, and lift arm safety locations
Optional 4-in-1 bucket attachment available

Specifications

Engine	Cummins QSB3.9, Turbocharged Diesel, 97kW (130hp), 4-cylinder
Rated Lift Capacity	3,500kg (at 600mm load centre)
Lifting Height	7.0m
Max Forward Reach	3.9m
Machine Weight	7,000kg
Travel Speed	9km/h (low) / 40km/h (high)
Dimensions (L x W x H)	5,215mm x 2,390mm x 2,580mm
Maximum Climbing Ability	45° (unloaded)
Gearbox	Hydraulic shift, 2 forward, 2 reverse
Fuel Tank / Hydraulic Oil Tank	170L / 170L

Applications

Lifting trusses and placing materials at height
Loading and stacking pallets, hay bales, feed
Site material handling for construction and agriculture
Loading trucks and trailers

To contact Digger King about Telehandlers | Reach Wizard 7000AT 7m Lift use Get a quote.
