Thermo Scientific Vanquish™ Charger Module ...

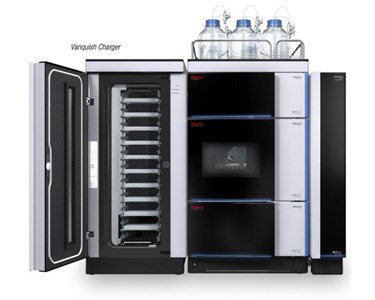

Thermo Scientific - Vanquish™ Charger Module

Supplier: Thermo Fisher Scientific Australia Pty Ltd

Vanquish™ Charger Module

The Vanquish Charger Module is a fully integrated, robotic sample management unit designed for use with the Vanquish UHPLC system, offering enhanced sample protection and throughput.

Automated, environmentally controlled sample management with live inventory and advanced cooling for high-throughput UHPLC workflows.

Key Features

Robotic, automated sample management with environmentally controlled chambers.
Barcode-based full inventory management and live sample addition.
Compatible with up to 9 deep well racks or 20 shallow well plates in SBS format.
Advanced air stream cooling system for sample integrity (4–40°C, =22 K below ambient).
Magnetic door lock, door status detection, and empty shelf level verification for safety.
Integrated with Chromeleon Chromatography Data System software for easy control and compliance.

Specifications

Cycle Time	Less than 1 minute
Sample Compartment Temperature Range	4–40°C (at least 22 K below ambient, <80% RH)
Temperature Accuracy	-2 to +2°C (at 25°C, 50% RH)
Temperature Stability	±0.5°C (at 25°C, 50% RH)
Sample Capacity	Shelf with 9 levels: Any 9 of the following (SBS footprint): 54 × 12 mm OD vials (=1.5 mL) 96 × 6, 7, 8 mm OD vials (=1.2 mL) 24 × 15 mm OD vials (=4 mL) Deep well plates (96 and 384 wells) Shelf with 20 levels: Any 20 of the following (SBS footprint): Shallow well plates (96 and 384 wells; 15 mm height)
Automation Features	Barcode reading, empty shelf level detection, rack/well plate verification, inventory management
PC Connection	USB 2.0
Safety Features	Rack/plate detection sensor, magnetic door lock, door status detection
Power Requirements	100–240 V AC, 50/60 Hz, max. 350 W/352 VA
Environmental Conditions	5–35°C, 20–80% RH (non-condensing)
Dimensions (h × w × d)	750 mm × 339 mm × 620 mm
Weight	Less than 35 kg

Ordering Options

Vanquish Charger (without shelf and racks): Part Number VH-A90-A
Shelf, 20 levels for shallow well plates: 6900.1010
Shelf, 9 levels for deep well plates and sample racks: 6900.1020
Sample rack, 54 pos, 12 mm OD vials: 6850.1023
Sample rack, 96 pos, 6 mm OD vials: 6850.1026

To contact Thermo Fisher Scientific Australia Pty Ltd about Thermo Scientific Vanquish™ Charger Module use Get a quote.

Key Features

Robotic, automated sample management with environmentally controlled chambers.
Barcode-based full inventory management and live sample addition.
Compatible with up to 9 deep well racks or 20 shallow well plates in SBS format.
Advanced air stream cooling system for sample integrity (4–40°C, =22 K below ambient).
Magnetic door lock, door status detection, and empty shelf level verification for safety.
Integrated with Chromeleon Chromatography Data System software for easy control and compliance.

Specifications

Cycle Time	Less than 1 minute
Sample Compartment Temperature Range	4–40°C (at least 22 K below ambient, <80% RH)
Temperature Accuracy	-2 to +2°C (at 25°C, 50% RH)
Temperature Stability	±0.5°C (at 25°C, 50% RH)
Sample Capacity	Shelf with 9 levels: Any 9 of the following (SBS footprint): 54 × 12 mm OD vials (=1.5 mL) 96 × 6, 7, 8 mm OD vials (=1.2 mL) 24 × 15 mm OD vials (=4 mL) Deep well plates (96 and 384 wells) Shelf with 20 levels: Any 20 of the following (SBS footprint): Shallow well plates (96 and 384 wells; 15 mm height)
Automation Features	Barcode reading, empty shelf level detection, rack/well plate verification, inventory management
PC Connection	USB 2.0
Safety Features	Rack/plate detection sensor, magnetic door lock, door status detection
Power Requirements	100–240 V AC, 50/60 Hz, max. 350 W/352 VA
Environmental Conditions	5–35°C, 20–80% RH (non-condensing)
Dimensions (h × w × d)	750 mm × 339 mm × 620 mm
Weight	Less than 35 kg

Ordering Options

Vanquish Charger (without shelf and racks): Part Number VH-A90-A
Shelf, 20 levels for shallow well plates: 6900.1010
Shelf, 9 levels for deep well plates and sample racks: 6900.1020
Sample rack, 54 pos, 12 mm OD vials: 6850.1023
Sample rack, 96 pos, 6 mm OD vials: 6850.1026

Read less...

To contact Thermo Fisher Scientific Australia Pty Ltd about Thermo Scientific Vanquish™ Charger Module use Get a quote.
