XAG Agricultural Drone | P100 Pro

XAG - Agricultural Drone | P100 Pro

Supplier: Aztec Dynamics

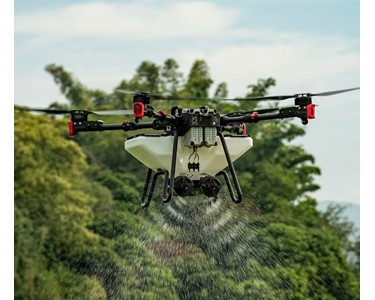

Agricultural Drone | P100 Pro

The P100 Pro is a next-generation agricultural drone designed for high-efficiency precision spraying and spreading, engineered to transform smart and autonomous farming operations.

50 kg payload with fully autonomous, precision spraying and spreading for efficient digital farming.

Autonomous & Highly Efficient Operations

Handles up to 50 kg payload for spraying and spreading tasks with exceptional flexibility and reliability.
Supports fully autonomous flight and remote control (RC) mapping for streamlined, precision farming.
Advanced 4D radar and PSL dual camera system deliver accurate obstacle avoidance and real-time field monitoring.

Efficiency data is collected from actual farming environments, measuring all aspects of operation—from load and route changes to take-offs and landings. Ensures reliability in practical agricultural conditions.

Field-Tested Performance

Application	Coverage/Hour	Dosage/Rate	Width	Speed	Payload
Farmland Spraying	19 ha	30 L/ha	9 m	13.8 m/s	50 kg
Orchard Spraying	2 ha	150 L/ha	3.5 m	2.5 m/s	50 kg
Spreading	1.3 t	375 kg/ha	7 m	9.5 m/s	50 kg

Robust Design & Portability

Folds down to 62% of original size for simple transport and loading.
Impact-absorbing arms, stress relief points, and IPX6K ingress protection ensure durability, resilience, and easy cleaning.
Dual-security latches and triple-protection plug for swift, safe payload changes.

Revolutionary Spraying & Spreading Systems

RevoSpray P3: 50 L tank capacity, up to 22 L/min flow, 5–10 m spray width, droplet size adjustable (60–500 µm), peristaltic pump system for longevity and precision.
RevoCast P3: 80 L container, 150 kg/min max, 3–7 m spread width, granule size 1–6 mm, precise centrifugal disc system, real-time weighing with corrosion-resistant sensors.

Smart Navigation & Control

4D imaging radar detects obstacles 1.5–80 m away, enabling seamless navigation and automatic height adjustment relative to crops.
Stable navigation thanks to inertial system based on Beidou RTK and downward vision module, with up to 10 min high-precision navigation in case of brief signal loss.
Remote controller allows immediate drone override and real-time farmland monitoring through dual PSL cameras.
SuperX 4 Pro intelligent control system with AI algorithm, dual antenna RTK, triple IMU, and automatic route planning.

Power System and Rapid Charging

962 Wh smart supercharge battery; full charge in 11 min with water-cooling tank.
Battery management system ensures cell self-balancing and temperature resistance with real-time monitoring for safe operation.
CM13600BH charger: 3.4 kW output, compact and portable.
CM15300D energy storage charger: Suitable for 72 V, 15 kWh+ batteries, with built-in safety protections.
Mist-cooling tank for fast heat dissipation, supporting continuous operation in challenging climates.

Remote Control Capabilities

ARC3 Pro remote controller supports virtual RTK, portable RTK base station, and offline flight route planning.
Compact, durable, with extended battery life for reduced operator fatigue.

To contact Aztec Dynamics about XAG Agricultural Drone | P100 Pro use Get a quote.
