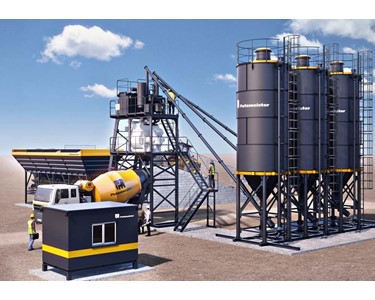

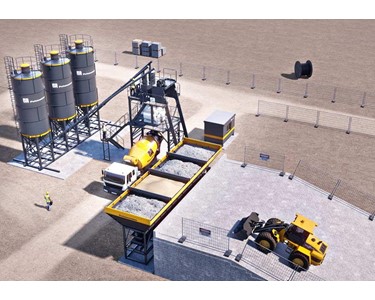

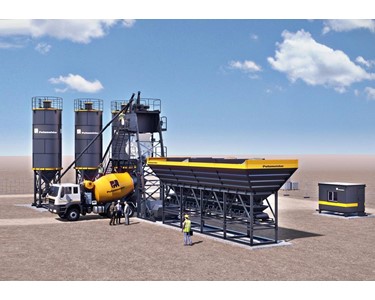

Putzmeister uses the best of German engineering to design and manufacture batching plants that meet the requirements of the global construction industry in this category. Available in the widest range of variants in this category of batching plants, the MT 1.0 offers high productivity, fully automated operation, ease of maintenance and a clean and safe working environment.

This plant is equipped with a twin-shaft mixer to ensure the fastest maximum mix quality.

Key Features

• Configurable to meet any job site requirement
• Choice of different aggregate storage types
• Consistent, homogenous mixture with every batch
• Easy drive-through, TMs don’t have to drive in reverse
• Modular design for faster installation
• Easy mobility between job sites
• Fastest maximum mix quality with twin-shaft mixer
• Automated central lubrication system for smooth running of mixer
• The top weighing system for cement, water and fly ash ensures accuracy at all times
• Preventive maintenance and interlocks in the control system
• Hood for inclined belt conveyor for cleaner aggregate movement
• Maintenance platforms with easy access to mixer, weighing systems and all other equipment

Technical Details

General Information

Operating Voltage - Frequency: 415/50 V/Hz

Automatic Batch Control: PC / Software

Configuration

MT 1.0 Skip & Inline Bins

• Plant Capacity: 60 m³/hr
• Space Required (L x W): 27 x 5 m
• Plant Height (without Silo): 10.8 m
• Concrete Discharge Height: 4x1 m
• Mixer Type: Twin Shaft TS 1.0
• Operating Voltage - Frequency: 415/50 V/Hz
• Input Power: 18.5 x 2 kW
• Dry Filling: 1.5 m³
• Compacted Concrete: 1.0 m³
• Weighing System - Cement: 750 kg
• Weighing System - Water: 250 kg
• Weighing System - Additive: 15 kg
• Compressor: 9 bar
• Pressure Tank Volume: 300 l
• Aggregate Storage - No. of Compartments (Std): 4
• Capacity of each Compartment: 12.5 m³
• Total Capacity (Std): 50 m³
• Batching Gate per Compartment: 1
• Filling Width per Compartment: 3 m
• Filling Height: 4.2 m
• Automatic Batch Control: PC / Software

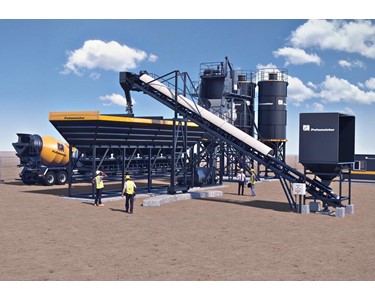

MT 1.0 Inclined Belt Conveyor & Inline Bins

• Plant Capacity: 60 m³/hr
• Space Required (L x W): 45 x 5 m
• Plant Height (without Silo): 10.8 m
• Concrete Discharge Height: 4.1 m
• Input Power: 18.5 x 2 kW
• Dry Filling: 1.5 kW
• Compacted Concrete: 1 m³
• Weighing System - Cement: 750 m³
• Weighing System - Water: 250 kg
• Weighing System - Additive: 15 kg
• Compressor: 9 kg
• Capacity of each Compartment: 10/15** m³
• Total Capacity (Std): 40/60** m³
• Batching Gate per Compartment: 1 m³
• Filling Width per Compartment: 3.2 m
• Filling Height: 4.2 m
• Automatic Batch Control: PC / Software

MT 1.0 Skip & Compartment Bins

• Plant Capacity: 60 m³/hr
• Space Required (L x W): 37 x 5 m
• Plant Height (without Silo): 10.8 m
• Concrete Discharge Height: 4.1 m
• Operating Voltage - Frequency: 415/50 V/Hz
• Mixer Type: Twin Shaft 1.0
• Input Power: 18.5 x 2 kW
• Dry Filling: 1.5 m³
• Compacted Concrete: 1.0 m³
• Weighing System - Cement: 750 kg
• Weighing System - Water: 250 kg
• Weighing System - Additive: 15 kg
• Compressor: 9 bar
• Pressure Tank Volume: 245 l
• Aggregate Storage - No. of Compartments (Std): 4
• Capacity of each Compartment: 12.5 m³
• Total Capacity (Std): 50 m³
• Batching Gate per Compartment: 1
• Filling Width per Compartment: 3 m
• Filling Height: 5.2 m
• Automatic Batch Control: PC / Software
