Concrete Batching Plant

Receive 1-3 days from order

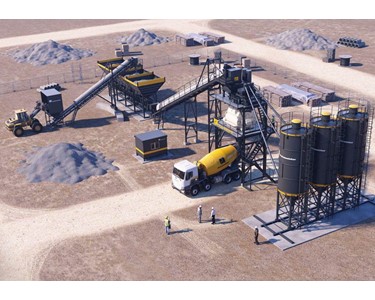

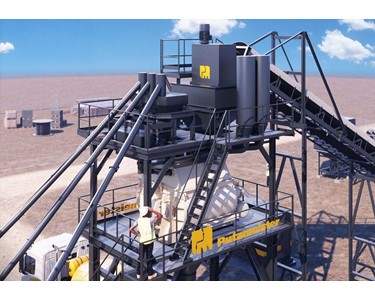

Putzmeister high-capacity Batching Plant, MT 3.0 is built to handle mass concreting requirements for large infrastructure and building projects, its robust and modular plant design can be suited to meet individual requirements for different applications.

The MT 3.0 is packed with features allowing for high volume productivity, ease in operations, and maintenance, and a clean and safe working environment. An efficient and reliable twin-shaft mixer installed in this plant makes it a perfect machine for any mass concreting application.

Key Features

Higher volume thanks to a 3 m³ twin-shaft mixer
Consistent homogeneous mixture with every batch
Easy drive-through, transit mixers don’t have to drive in reverse
Faster installation and dismantling because of a modular design
Robust structure that can be easily moved from one location to the next
Small footprint area
Top weighing system for cement, water and fly-ash ensures accuracy at all time
Flexibility to increase or decrease the number of aggregate bins
Lower operating costs in the long run
Reduced manpower engagement
The central lubrication system injects grease at regular intervals for the smooth running of the mixer
Highly wear-resistant plates in the mixer are suitable for the production of different types of concrete
Easily accessible for maintenance
Fully computerized software with preventive maintenance schedule and interlocks
System-generated calibration chart

Technical Details

General Information

Automatic Batch Control: PC / Software

Configuration

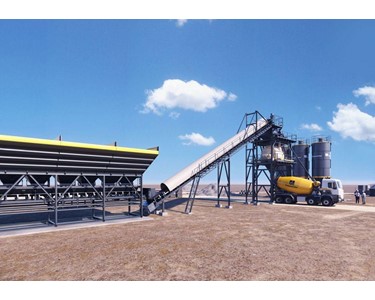

MT 3.0 with Inclined Belt Conveyor and Inline Bins

Plant Capacity: 120 m³/hr
Space Required (L x W): 45 x 8 m
Plant Height (without Silo): 13 m
Concrete Discharge Height: 4.1 m
Operating Voltage - Frequency: 415/50 V/Hz
Mixer Type: Twin Shaft TS 3.0
Input Power: 55 x 2 kW
Dry Filling: 4.5 m³
Compacted Concrete: 3.0 m³
Weighing System - Cement: 1500 kg
