Loma Systems - X5 Spacesaver & CW3 Checkweighing Combo System

Supplier: Inspection Systems

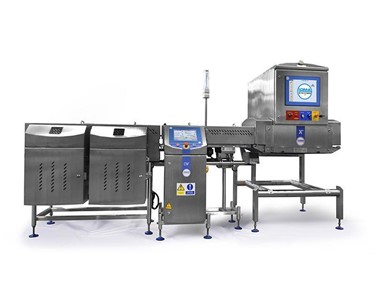

X5 Spacesaver & CW3 Checkweighing Combo System

The X5 Spacesaver X-Ray & CW3 Checkweighing combination system is designed to inspect for contaminants and reduce product give away. This system is perfect for inspecting retail-packed convenience food, ready meals in foil trays and small end-of-line

10 Recent Views Contact us for availability

This system is perfect for inspecting retail-packed convenience food, sausages, joints, ham, prepared fruit, vegetables and other products up to 400mm wide (300 mm on X5-300 version) by 180mm high. Consisting of both Loma’s X5 Spacesaver X-Ray Inspection and CW3 Checkweighing capabilities the system uses linked colour touchscreens complete with icon-driven menu’s for easy operation with integrated machine communication for safe product transfer.

Features:

Detects metals, bone, glass and dense plastic contaminants with automatic rejection of contaminated products
Weighing using a CW3 dynamic checkweigher, including approvals to OIML R51 and MID (EC TAC)
Combination system eases acquisition, installation and support of a robust CCP designed to improve quality of production output simplifying the process
Linked multilingual colour touchscreens complete with icon-driven menus for straight forward operation and integrated machine communication for safe product transfer
Extensive data logging and reporting via USB or Ethernet for HACCP and retail compliance
Multilevel password protection provides secure access and are logged against events for traceability (CFR21 part11)

Specifications:

Finish	304 Stainless Steel (Brushed)
Maximum Product Width	300 (with X5-300 & CW3 300) 400 (with X5-500 & CW3 400)
Line Length (mm)	3,365
Line Height Option (mm)	700\|750\|800\|850\|900\|950\|1000 ± 50
X-Ray Output	150W (60kV 2.5mA)
IP Rating	IP66
Belt Type	PU Blue Belt
Speed Range (m/min)	20-75
Power Requirements	2 x 230/1ph/50Hz N+E OR 2 x 110/1ph/60Hz N+E
Air Supply	5 to 8 Bar (10mm Outside Dia) 72-116 PSI
Cooling	Vortex or AC Air Conditioning
Operating Environment	2oC to 10oC with warm up 10oC to 25oC Vortex
Operating Environment AC Air Conditioning	25oC to 35oC AC Air Conditioning (Cabinet reduced to NEMA 4X with AC Option)
X-Ray Safety	Leakage less than 1 μSv/h
Detection Algorithms	15 Multilayer Algorithms combined in any combination
Reporting	Event, Batch, Shift, PVS
Data Retrieval	Via USB, Ethernet, Enet,
Weight Range (g) MID/R51 Approved	50 - 6000*
Weight Range (g) Non-Approved	20 - 6000*
Typical Accuracy (g)	0.30*

To contact Inspection Systems about Loma Systems X5 Spacesaver & CW3 Checkweighing Combo System use Get a quote.

Features:

Detects metals, bone, glass and dense plastic contaminants with automatic rejection of contaminated products
Weighing using a CW3 dynamic checkweigher, including approvals to OIML R51 and MID (EC TAC)
Combination system eases acquisition, installation and support of a robust CCP designed to improve quality of production output simplifying the process
Linked multilingual colour touchscreens complete with icon-driven menus for straight forward operation and integrated machine communication for safe product transfer
Extensive data logging and reporting via USB or Ethernet for HACCP and retail compliance
Multilevel password protection provides secure access and are logged against events for traceability (CFR21 part11)

Specifications:

Finish	304 Stainless Steel (Brushed)
Maximum Product Width	300 (with X5-300 & CW3 300) 400 (with X5-500 & CW3 400)
Line Length (mm)	3,365
Line Height Option (mm)	700\|750\|800\|850\|900\|950\|1000 ± 50
X-Ray Output	150W (60kV 2.5mA)
IP Rating	IP66
Belt Type	PU Blue Belt
Speed Range (m/min)	20-75
Power Requirements	2 x 230/1ph/50Hz N+E OR 2 x 110/1ph/60Hz N+E
Air Supply	5 to 8 Bar (10mm Outside Dia) 72-116 PSI
Cooling	Vortex or AC Air Conditioning
Operating Environment	2oC to 10oC with warm up 10oC to 25oC Vortex
Operating Environment AC Air Conditioning	25oC to 35oC AC Air Conditioning (Cabinet reduced to NEMA 4X with AC Option)
X-Ray Safety	Leakage less than 1 μSv/h
Detection Algorithms	15 Multilayer Algorithms combined in any combination
Reporting	Event, Batch, Shift, PVS
Data Retrieval	Via USB, Ethernet, Enet,
Weight Range (g) MID/R51 Approved	50 - 6000*
Weight Range (g) Non-Approved	20 - 6000*
Typical Accuracy (g)	0.30*

Read less...

To contact Inspection Systems about Loma Systems X5 Spacesaver & CW3 Checkweighing Combo System use Get a quote.

X5_Spacesaver_X-ray_Inspection_Combination_Datasheet(1.17MB)
