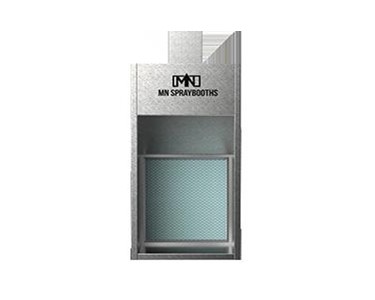

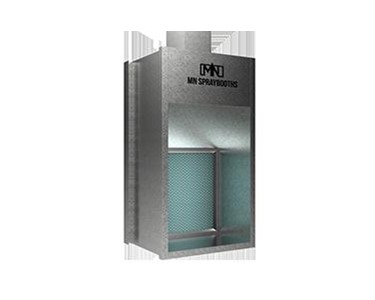

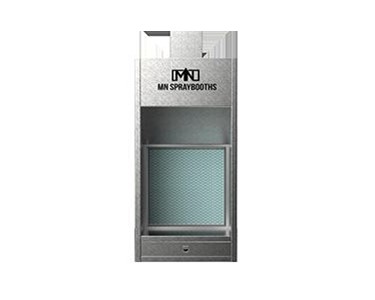

Compact, certified solution for controlled, safe small-part spray painting.

The Micro range offers a clever, compact solution for containing fumes and overspray to a minimal area within a workshop. Although compact, it operates on the same principles as larger industrial spray booths, ensuring safety, precision, and compliance.

Features

Constructed from durable 20 gauge galvanised steel
Suitable for colour matching, aerosol cans, touch-up work, low volume, and small parts spray painting
Roof-mounted machinery with 400mm antistatic inline impeller exhaust fan and 0.75 kW single-phase motor
Glassfibre exhaust filter for effective filtration
User-friendly control system compliant with AS/NZS 4114 standards
High-efficiency collection system draws fresh air through an open front, exhausting through a rear wall extraction system
Available in a range of configurations to suit various workshop needs

Power Supply

415 Volts, 10 Amps

Available Models and Dimensions

Model	Overall Dimensions (W x H x D, mm)
Bench mount	850 x 1500 x 700
Bench mount with drawer	850 x 1700 x 700
Standalone	1400 x 2950 x 700
Standalone with storage	1400 x 2950 x 700

Compliance & Quality

Certified as Australian Made – Australian Grown (AMAG)
Manufactured with a focus on product quality and customer satisfaction
Designed to meet strict industry standards for spray booths
