High-capacity, mobile screening for demanding waste and resource recovery.

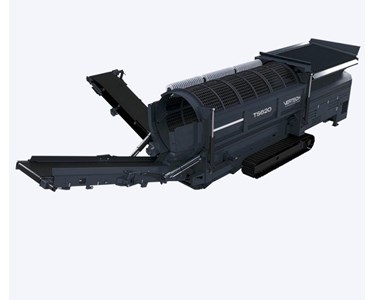

The TS620 Trommel is a heavy-duty tracked trommel screen engineered for efficient material separation and maximum site flexibility. Built around a large 5.5 m x 2.0 m screening drum, this unit provides high throughput and reliable mobility for challenging applications across waste, organics, mulch, and recycling streams.

Main Features

Simple, fast-change drum for easy material transitions
Integrated drum cleaning brush ensures consistent operation
Spacious hopper allows high-volume loading
Variable speed conveyors for optimal process control
Tracked chassis provides full on-site mobility
Diesel powerpack ensures reliable, standalone operation
Handles up to 200 tonnes per hour throughput
Heavy-duty construction for demanding recycling and resource recovery tasks

Optional Configurations

Alternative drum sizes and mesh options
Extended fines conveyor
Additional stockpiling conveyors
Dust suppression system
Remote-control operation
CAT diesel powerpack option

Suitable For

Compost, mulch, and topsoil
Green and wood waste
Light construction and demolition waste
Recycling fines and screened organics

Specifications

Weight	20,000 kg
Drum Size	5.5 m x 2.0 m
Throughput Capacity	Up to 200 tonnes per hour
Hopper Capacity	9.6 m³ with extensions
Drum Angle Adjustment	0–6° hydraulic

This machine delivers engineered screening performance for local operators without the complexity or cost of fixed infrastructure.
