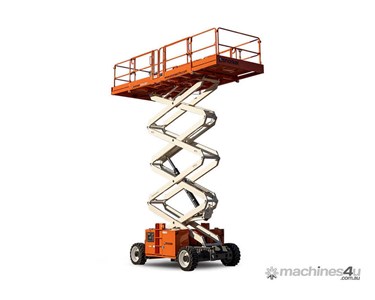

Name: S9053RT Rough Terrain Scissor Lift
Price: 55000 AUD
Availability: InStock

High capacity and robust terrain performance for challenging construction sites.

Key Features

4-wheel drive system designed for rough terrain
4 hydraulic outriggers with automatic leveling
High platform capacity of 680 kg
Large roll-out extension deck
Foam-filled tyres for better traction and durability
Fold-down guardrails for reduced stowed height
Proportional controls, power line to platform, platform overload and descent alarms
Flashing amber lights, dual lanyard attachment points, and locking oscillating axle for added safety
2 years parts and labour, 5 years structural warranty

Specifications

Max Working Height	17.9 m
Max Platform Height	15.9 m
Platform Size (stowed)	3.58 m x 2.28 m
Platform Size (single deck extended)	4.95 m x 2.28 m
Platform Size (dual deck extended)	6.7 m x 2.28 m
Extension Deck Length	1.44 m
Overall Width	2.28 m
Overall Length (without outriggers)	4.08 m
Overall Length (with outriggers)	4.77 m
Stowed Height	3.2 m
Minimum Height (guardrails folded)	2.33 m
Ground Clearance	274 mm
Platform Capacity (SWL)	680 kg
Max Drive Height	13.1 m
Max Wind Speed	12.5 m/s
Max Drive Speed (stowed)	6.7 km/h
Max Drive Speed (elevated)	0.8 km/h
Raise/Lower Time	55/60 seconds
Gradeability	50%
Max Stabiliser Leveling (front to rear)	7°
Max Stabiliser Leveling (side to side)	12°
Inside Turning Radius	2.03 m
Outside Turning Radius	5.28 m
Tyres	12 x 33 foam filled
Drive System	4 wheel drive
Power Source	Kubota diesel
Weight (without outriggers)	7,484 kg
Weight (with outriggers)	8,829 kg

Additional Notes

Batteries at end of life should be returned to Snorkel for recycling.
Expert advice, reliable brands, and a network of service providers included in package.
Finance options and national delivery available.

To contact Equipment Sales Australia about Snorkel S9053RT Rough Terrain Scissor Lift use Get a quote.
