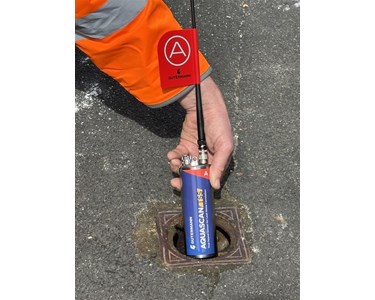

1. True Sound Sensors – outstanding performance: The AQUASCAN TM3 is the first real-time correlator for water distribution networks to feature radio-controlled sensor filter settings. This innovative capability allows digital prefilters to adapt to leak noise directly within the sensor itself, resulting in significantly enhanced sensitivity and dynamic range. Users can choose from a selection of specialized filters designed for trunk mains, enabling more reliable leak detection at greater distances—even on large-diameter pipes and under challenging conditions. At the heart of the system is the completely new True Sound Sensor (TSS) accelerometer, offering ten times greater leak noise sensitivity. Correlation results are delivered at exceptional speed, and with a compact 50mm diameter, it is the smallest sensor of its kind on the market. Additional features include a USB-C port for fast charging, a hydrophone connection, and a dual-mode uplink and downlink radio that enables both sensor control and real-time leak noise transmission.

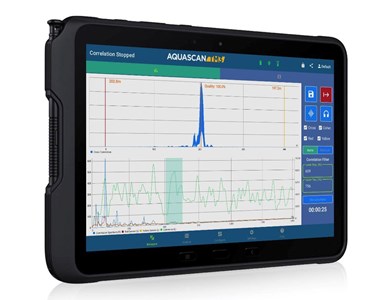

2. New Android software easy and flexible in use: The versatile real-time correlator AQUASCAN TM3 is fit for all purposes. GUTERMANN’s new AQUASCAN TM3 APP software provides the same simple and easy-to-navigate user interface and all the features of the AQUASCAN 760T, plus unique capabilities for trunk main leak detection, such as trunk main filter settings, map visualization, the ability to import GIS/KML files, and the option to upload results into the GUTERMANN cloud (available in the Evolution release). The industry-leading, sophisticated “Auto Filter” remains available in the processing display unit. It automatically selects the most relevant frequency bands of interest and amplifies them to generate a clear, accentuated peak. No more trial and error with manual filters to locate potential leak noise sources. No more uncertainty about whether a leak exists. The AQUASCAN TM3 handles it—especially on plastic and large-diameter pipes.

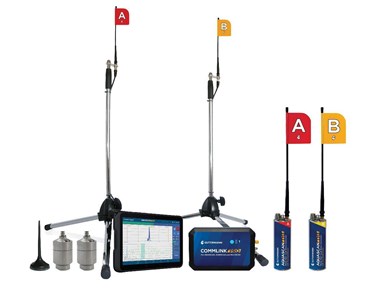

3. COMMLINK PRO with dual-mode radio: The AQUASCAN TM3 builds on the proven design of the legendary AQUASCAN TM2 real-time trunk main leak correlator. At its core is the new COMMLINK PRO, featuring a dual-mode radio system: the trusted analog radio for real-time noise data with zero latency, and a new digital control radio based on LoRa modulation, providing exceptional transmission range. This advanced radio setup allows remote control of both True Sound Sensors—enabling users to switch sensors on or off and adjust filter settings from a distance. The firmware is upgradeable via the USB-C charging port. In its next evolution, it will support reading and configuring ZONESCAN 850 and MULTISCAN 2 leak detection devices. This means that operators will only need a single communication link unit to handle a wide range of leak detection scenarios—from lift-and-shift, to offline correlation, to real-time correlation using True Sound Sensors.
4. Secure Cloud: The AQUASCAN TM3 enables registered users to upload measurement data directly to the GUTERMANN CLOUD, which features an intuitive interface based on Google Maps™ and Street View™. Users can save and export correlation files for secure storage, further analysis, re-correlation, or to request a second opinion from a GUTERMANN expert. This cloud integration allows the AQUASCAN TM3 to seamlessly interact with the ZONESCAN noise logger range, the MULTISCAN multi-point correlator, and the ZONELOG data logger, supporting long-term asset management and network monitoring. An integrated event management tool streamlines the workflow by enabling classification of leak alarms, tracking of active and repaired leaks, and generation of comprehensive leak reports.

   As with all GUTERMANN solutions, the AQUASCAN TM3 includes free firmware and software updates for the lifetime of the device.
