Gutermann ZoneScan Hydro

Gutermann - ZoneScan Hydro

Supplier: Gutermann Pty Ltd

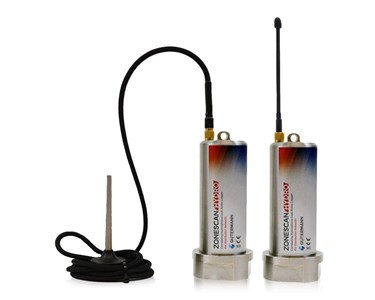

ZoneScan Hydro

ZONESCAN HYDRO relies on the same communication and leak detection principles as ZONSECAN AI but boasts a hydrophone sensor for increased sensitivity and performance – even in the most challenging acoustic environments.

Plastic Pipe leak detector

Receive 3-7 days from order

High Performance for Water Networks

ZONESCAN HYDRO builds on the proven ZONESCAN AI platform and offers:

Superior acoustic sensitivity through direct hydrophone measurement
High-precision leak pinpointing (=1 m) enabled by =1 ms time synchronisation
This precision is also achieved in unsynchronised NB-IoT networks
Large logger spacing (150–350 m) depending on pipe material and network layout
AI-ready leak scoring with future enhancements enabled by Gutermann’s cloud ecosystem

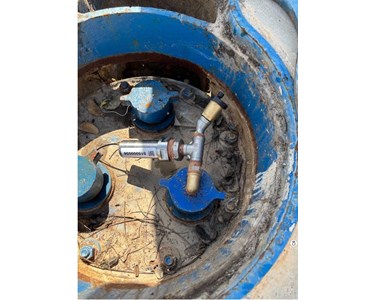

Compact, Easy to Install, and Built for the Field

With the industry’s most compact hydrophone logger design, installation is fast and straightforward:

Guided setup via theZONESCAN INSTALLAndroid app
Fits into any chamber thanks to ultra-compact dimensions
Automatic air bleed valve kits
Improved battery prediction via integrated fuel gauge chip
Field-replaceable battery and sensors for temperature, humidity and motion

Reliable NB-IoT Connectivity – Even Underground

Engineered for underground deployment, ZONESCAN HYDRO usesNB-IoTfor robust communication significantly outperforms other LoRa Wan or 3G/4G devices due to:

Typical 5+ year battery life
Deep underground coverage without external antennas
Remote firmware/configuration updates
Multi-network roaming SIM
Outstanding daily read rates of =95%
No need of additional repeaters

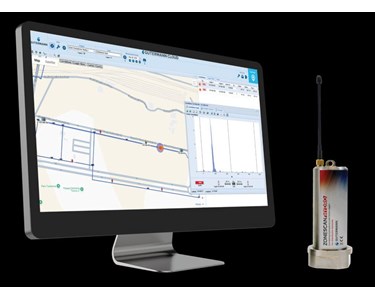

Advanced Cloud Analytics with ZONESCAN.net

Gutermann’s secure cloud platform offers e.g.:

- Automatic daily correlation
- Advanced spectral analysis to reduce false alarms
- Full historical data access
- Google Maps™ based GIS tools
- Event and workflow management

To contact Gutermann Pty Ltd about Gutermann ZoneScan Hydro use Get a quote.

High Performance for Water Networks

ZONESCAN HYDRO builds on the proven ZONESCAN AI platform and offers:

Superior acoustic sensitivity through direct hydrophone measurement
High-precision leak pinpointing (=1 m) enabled by =1 ms time synchronisation
This precision is also achieved in unsynchronised NB-IoT networks
Large logger spacing (150–350 m) depending on pipe material and network layout
AI-ready leak scoring with future enhancements enabled by Gutermann’s cloud ecosystem

Compact, Easy to Install, and Built for the Field

With the industry’s most compact hydrophone logger design, installation is fast and straightforward:

Guided setup via theZONESCAN INSTALLAndroid app
Fits into any chamber thanks to ultra-compact dimensions
Automatic air bleed valve kits
Improved battery prediction via integrated fuel gauge chip
Field-replaceable battery and sensors for temperature, humidity and motion

Reliable NB-IoT Connectivity – Even Underground

Engineered for underground deployment, ZONESCAN HYDRO usesNB-IoTfor robust communication significantly outperforms other LoRa Wan or 3G/4G devices due to:

Typical 5+ year battery life
Deep underground coverage without external antennas
Remote firmware/configuration updates
Multi-network roaming SIM
Outstanding daily read rates of =95%
No need of additional repeaters

Advanced Cloud Analytics with ZONESCAN.net

Gutermann’s secure cloud platform offers e.g.:

- Automatic daily correlation
- Advanced spectral analysis to reduce false alarms
- Full historical data access
- Google Maps™ based GIS tools
- Event and workflow management

Read less...

To contact Gutermann Pty Ltd about Gutermann ZoneScan Hydro use Get a quote.

ZONESCAN-HYDRO_Data-Sheet_EN_V2.0_A4_Web_Apr_2026(0.62MB)
