Gutermann ZoneLog Single Pressure and Flow ...

Gutermann - ZoneLog Single Pressure and Flow logger- NBIoT

Supplier: Gutermann Pty Ltd

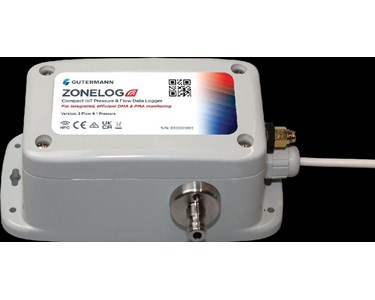

ZoneLog Single Pressure and Flow logger- NBIoT

Introducing the ZoneLog Single Pressure and Flow Logger from Gutermann! Optimize your water management with real-time monitoring, ensuring efficiency and reducing costs. Perfect for smart utilities!

Highly accurate sensor, easy install

Receive 1-3 days from order

Unique features to optimize installation & maintenance:Unique features to optimize installation & maintenance Installing a pressure and flow data logger has never been easier. The Android NFC app ZONELOG Install will guide you through the process of activating the ZONELOG data logger, registering it to the NB-IoT or CAT-M1 network, assigning its exact location and programming measurements and upload intervals via NFC or via the cloud. ZONELOGs are typically deployed at strategic locations depending on geography, DMAs, PMAs or around PRVs. With a single unit and one of the smallest dimensions in the industry, the ZONELOG data logger fits into most chambers. The potential maintenance of a ZONELOG is optimized by:
• Field replaceable battery
• Field accessible SIM card
• Remote battery status
• Remote temperature view
• “Zero” air-pressure feature
• Firmware upgrade over the air
Precise readings 24/7: The recorded measurements of every ZONELOG are stored in the data logger’s memory and uploaded via NB-IoT or CAT-M1 e.g. hourly to the ZONELOG cloud. This data can be used to auto-generate alerts 24/7 in near real time and provide advanced flow & pressure analytic alerts (e.g.: high minimum night flow = leakage) or high pressure (e.g.: PRV malfunction) events. With the integration of ZONELOG into Gutermann’s leak detection software a complete set of new features will be available. Using a Keller pressure sensor assures highest precision & reliability over time. Combined with automatic daily time synchronization at ~100ms accuracy helps delivering unprecedented results for DMA & PMA monitoring.
Reliable NB-IoT/ CAT-M1 data upload straight to the cloud:ONELOG is using a dual modem for low power NB-IoT and CAT-M1 networks supported by most GSM providers. They are well suited for battery powered devices installed in underground chambers. The use of latest chipsets, high gain antennas and good collaboration with network providers are key ingredients for reliable communication to ZONELOG cloud. ZONELOG using NB-IoT & CAT-M1 communication significantly outperforms other devices.
• 5 years battery life with hourly data transmission
• Deep underground coverage
• Firmware and configuration upgrades over NB-IoT or LTE-M networks
• Lower communication costs
• User or factory mounted SIM card with multi network roaming option
• Outstanding typical daily read rates of >95%
Combining acoustic leak detection with pressure and flow logging:The GUTERMANN CLOUD is the industry leading software for leak analysis & NRW reduction. It has a Google Maps™ and Street View™ based user interface which allows to manage the entire leak detection infrastructure, import GIS pipe data, analyze, and process leak alarms. Parameters such as recording times, alarm thresholds and many more can be changed anytime. An event management tool facilitates:
• Efficient workflow and the classification of leak alarms
• Track events
• User friendly direct linking from ZONELOG CLOUD to GUTERMANN CLOUD
• Generation and distribution of detailed event reports

To contact Gutermann Pty Ltd about Gutermann ZoneLog Single Pressure and Flow logger- NBIoT use Get a quote.

Unique features to optimize installation & maintenance:Unique features to optimize installation & maintenance Installing a pressure and flow data logger has never been easier. The Android NFC app ZONELOG Install will guide you through the process of activating the ZONELOG data logger, registering it to the NB-IoT or CAT-M1 network, assigning its exact location and programming measurements and upload intervals via NFC or via the cloud. ZONELOGs are typically deployed at strategic locations depending on geography, DMAs, PMAs or around PRVs. With a single unit and one of the smallest dimensions in the industry, the ZONELOG data logger fits into most chambers. The potential maintenance of a ZONELOG is optimized by:
• Field replaceable battery
• Field accessible SIM card
• Remote battery status
• Remote temperature view
• “Zero” air-pressure feature
• Firmware upgrade over the air
Precise readings 24/7: The recorded measurements of every ZONELOG are stored in the data logger’s memory and uploaded via NB-IoT or CAT-M1 e.g. hourly to the ZONELOG cloud. This data can be used to auto-generate alerts 24/7 in near real time and provide advanced flow & pressure analytic alerts (e.g.: high minimum night flow = leakage) or high pressure (e.g.: PRV malfunction) events. With the integration of ZONELOG into Gutermann’s leak detection software a complete set of new features will be available. Using a Keller pressure sensor assures highest precision & reliability over time. Combined with automatic daily time synchronization at ~100ms accuracy helps delivering unprecedented results for DMA & PMA monitoring.
Reliable NB-IoT/ CAT-M1 data upload straight to the cloud:ONELOG is using a dual modem for low power NB-IoT and CAT-M1 networks supported by most GSM providers. They are well suited for battery powered devices installed in underground chambers. The use of latest chipsets, high gain antennas and good collaboration with network providers are key ingredients for reliable communication to ZONELOG cloud. ZONELOG using NB-IoT & CAT-M1 communication significantly outperforms other devices.
• 5 years battery life with hourly data transmission
• Deep underground coverage
• Firmware and configuration upgrades over NB-IoT or LTE-M networks
• Lower communication costs
• User or factory mounted SIM card with multi network roaming option
• Outstanding typical daily read rates of >95%
Combining acoustic leak detection with pressure and flow logging:The GUTERMANN CLOUD is the industry leading software for leak analysis & NRW reduction. It has a Google Maps™ and Street View™ based user interface which allows to manage the entire leak detection infrastructure, import GIS pipe data, analyze, and process leak alarms. Parameters such as recording times, alarm thresholds and many more can be changed anytime. An event management tool facilitates:
• Efficient workflow and the classification of leak alarms
• Track events
• User friendly direct linking from ZONELOG CLOUD to GUTERMANN CLOUD
• Generation and distribution of detailed event reports
