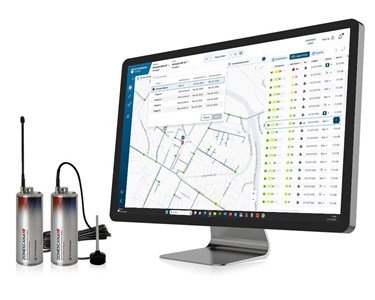

Gutermann - ZoneScan Ai Get latest price

Read more...

To contact Gutermann Pty Ltd about Gutermann ZoneScan Ai use Get a quote.

• Packed with features to optimise installation & maintenance: Installing a leak noise logger has never been easier. The Android app ZONESCAN INSTALL will guide you through the process of activating the ZONESCAN AI logger, registering it to the NB-IoT network, assigning its exact location and programming the noise recording times. Loggers are typically deployed every 50 to 300 meters, depending on the area and the pipe properties. With a single unit and the smallest dimensions in the industry, the ZONESCAN AI logger fits into any size chamber. The maintenance of loggers is optimised thanks to:
  – Field replaceable battery
  – Inbuilt 3D motion sensor to detect logger displacements
  – Fuel gauge chip for improved battery lifetime prediction
  – Humidity and temperature sensors to monitor logger health
• High precision leak pinpointing thanks to automatic correlation and Artificial Intelligence:The recorded sound signal of every logger is time synchronised via Gutermann’s proprietary technology with best-in-class precision of =1 millisecond. Thus, it enables the cloud software to automatically correlate the data between all neighbouring sensors and to provide leak indications even where the individual loggers don’t recognise the existence of a nearby leak. The correlation enables pinpointing of leaks with a typical precision of =1m. ZONESCAN AI now adds additional leak intelligence by providing artificial intelligence. ZONESCAN NET will provide an “AI Predictor” for every measurement, based on comparing the recorded sound file with a vast database of qualified samples that Gutermann has collected over the years. This AI Predictor further helps minimising ambiguity and allows customers to find more hidden leaks than ever.
• NB-IoT data transmission from below the chamber lid directly to the cloud: ZONESCAN AI is using NB-IoT (Narrowband Internet of Things) technology, supported by most GSM operators. It is best suited for battery powered devices installed in underground chambers. The use of the latest radio chip, high performing antennas and close software collaboration with the GSM providers are optimising the communication to the Gutermann cloud. ZONESCAN AI using NB-IoT -significantly outperforms other IoT 3G/4G CAT M1 devices due to:
  – Avg. 5+ year battery life
  – Deep underground coverage
  – Firmware and configuration upgrades over NB-IoT network
  – Lower communications costs
  – User or factory mounted SIM card with multi network roaming option
  – Outstanding typical daily read rates of =95%
• ZONESCAN.net industry-leading cloud software for leak analysis: GUTERMANN CLOUD has a Google Maps™ and Street View™ based user interface which allows you to manage your entire leak detection infrastructure, import your own GIS pipe data and to analyse and process leak alarms. Parameters such as recording times, alarm thresholds and many more can be changed anytime. An event management tool facilitates:
  – Efficient work flow and the classification of your leak alarms
  – Track active and repaired leaks
  – Generation and distribution of detailed leak reports
  The new Cloud AI (to be released in 2024) is using thousands of factual training data validated by worldwide real users. Thus, increases leak prediction reliability to a completely new level. ZONESCAN AI provides the required hardware for artificial intelligence, using a state-of-the-art CPU with additional cyber security
• Technical Specifications:
  Enclosure/housing material: 100% stainless steel
  Ingress protection: IP68
  Dimensions: Length 107mm/4.2”, Ø 40mm/1.6”
  Weight: 0.54 kg (1.2 lbs)
  Temperature range: -30°to +70°C (-22° to +158°F) *refer to reference temperature profile
  Communication: Cellular (NB-IoT), various bands
  SIM Card: Nano, exchangeable
  Battery: Replaceable Li-SOCl2 cell size C
  Battery life: Typically, 5 years, depending on configuration, NB-IoT coverage and temperature profile
  Antenna: High performance mono band extended antenna with magnetic base and RSMA connector. In shallow chambers, a flexible stub antenna can be directly mounted on the logger.

Cloud Software Features:

– Browser-based cloud software with data hosted on secure servers of GUTERMANN’s professional hosting partners– Geospatial mapping of loggers and leaks (using Google Maps and Street View technology)– Leak identification thanks to automatic daily correlation– Artificial intelligence in the powerful “AI Predictor”– Unlimited data storage– Ability to import network specific GIS and piping data in KML format– Maintenance mode for real-time check-up and battery percentage of loggers– Automatic calculation of leak probability– Email alarm for immediate leak notification– Event ticket management with work-flow support– Advanced spectrum analysis for avoidance of false leak alarms created by constant mechanical and electrical noise sources– Graphical display of all historical sound histograms, frequency spectra and correlation data to investigate difficult results– Remote access possible from anywhere in the world – on demand by GUTERMANN specialists to assist in difficult leak investigation– Automatic upgrades of cloud software, Android app and firmware
