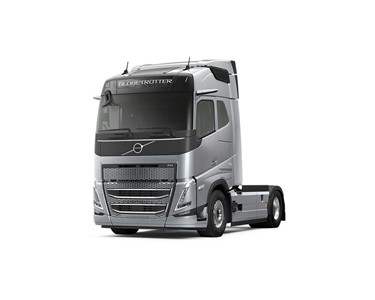

Volvo Prime Mover Truck | FH

Volvo - Prime Mover Truck | FH

Supplier: Wagga Trucks

Prime Mover Truck | FH

The Volvo FH is a heavy-duty truck designed for demanding long-haul transport, offering advanced powertrains, superior comfort, and reliable efficiency.

Advanced powertrains and supreme driver comfort for long-haul efficiency.

Powertrain

Engines:
- Electric: Up to 330–490 kW (450–666 hp) continuous power; Range up to 300 km (4x2 tractor trailer); Charging: 9.5h (AC, 43 kW), 2.5h (DC, 250 kW); Battery capacity: 360–540 kWh (4–6 batteries)
- Diesel D13K / D13K500TC: Euro 6, 12.8L displacement, 6 cylinders
  - Compression Ratio: 18.0:1 / 17.0:1
  - Max Power (D13K 500): 368 kW/500 hp at 1530–1800 r/min, Max Torque: 2500 Nm at 980–1270 r/min
  - Max Power (D13K500TC): 368 kW/500 hp at 1250–1600 r/min, Max Torque: 2800 Nm at 900–1300 r/min
  - Max Power (D13 540): 397 kW/540 hp at 1450–1800 r/min, Max Torque: 2600 Nm at 1000–1450 r/min
  - Oil change intervals: Up to 100,000 km or once per year with VDS4
Gearboxes:
- I-Shift (12-speed, splitter & range), available with retarder, PTO, crawler gears, and ultra-low gears
- I-Shift Dual Clutch (Overdrive, 2800 Nm max torque, 80 t GCW approval)
Rear Axles:
- Single reduction and hub reduction options, GCW ratings up to 100 tonnes
- Axle ratios: 2.06:1 to 5.14:1 available
Power Take-Offs: Both clutch-independent and -dependent types for hydraulic and mechanical drives

Cab & Comfort

Cab Options: Globetrotter XXL (extra long & wide bed), Globetrotter XL (extra storage), Sleeper cab, Low Sleeper cab
Interior Heights: Up to 220 cm (Globetrotter XL), 171 cm (Sleeper), 147 cm (Low Sleeper)
Beds: Up to 213 cm long, multiple width options (head/mid/foot: 99/106.5/91 cm), foam or pocket-sprung mattresses with optional comfort overlays and reclining backrests
Driver’s Seat: Robust vinyl, 240 mm fore-aft, 100 mm vertical adjust, lumbar and back rest adjustment, head restraint
Passenger Seat: Robust vinyl, with head restraints. Optional moving seat available.
Storage: Front shelf with DIN standard recesses, roller-blind compartments, 130 L under-bed, additional storage under cab, and PET bottle compartment
Climate: Three alternative climate systems with advanced ventilation and heating options
Windows: Each with a fixed sky window or optional roof hatch serving as emergency exit

Exterior

Available in three trim levels: Basic, Enhanced, and Highest Level; up to 650 colour choices
Exterior storage: Large compartments accessible from both inside and outside the cab; additional 30 L under cab
Adjustable air intakes (high or low), four-point suspension with coil/air options

Dimensions & Capacity

Cab Type	Height A (mm)	Height B (mm)	Height C (mm)	Height D (mm)	Drive	Chassis Height	Suspension	Tyres
Sleeper (Tractor)	3450	3970	3970	3245	6x4	High	Leaf/Air	315/80-R22.5
Globetrotter XL (Tractor)	3450	3970	3970	3245	6x4	High	Leaf/Air	315/80-R22.5

Chassis and suspension can be tailored for different configurations and operational requirements

Key Features

Advanced engine and powertrain options including electric and Euro 6 diesel
Flexible interior and exterior configurations for optimal driver comfort and load handling
Comprehensive safety and driver support technology, including camera monitor system, I-Shift automated gearbox, and Volvo Dynamic Steering
Multiple power take-off and axle choices to meet specialist operational needs
Numerous customisation options in colour, interior, and extra equipment

To contact Wagga Trucks about Volvo Prime Mover Truck | FH use Get a quote.
