CyberVisuell - 10.1” WXGA Industrial Touch Monitor CM-P101-CT Price Guide: $954

Supplier: ESIS

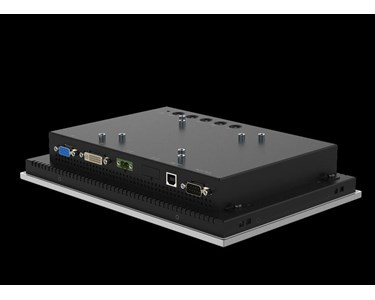

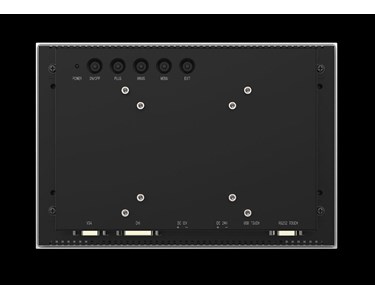

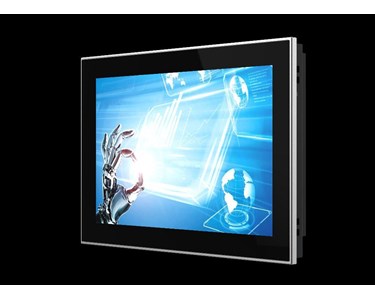

10.1” WXGA Industrial Touch Monitor CM-P101-CT

1/5

Industrial LED Monitor, P-Cap.Touch, 10.1", 1280*800, Industrial LCD, DVI+VGA, DC 12V with 40W adapter By Default, Panel mounting or VESA / VGA+USB cable, IP65 Front

Industrial Grade Reliability

Receive 1-2 weeks from order

Features:

Modular designed, aluminum-magnesium alloy, anodized treated;
10.1” TFT LCD Display, LED Backlit, WXGA 1280*800;
Multi up to 10 points Pcap. touchscreen, EETI controller;
USB touch interface, optional RS232 touch interface;
DC 12V power input, optional wide DC 9 ~36v input;
Dual signal inputs: 1 VGA, 1 DVI;
Panel mount, VESA 75/100 mount, Front IP65 rated protection
Optional outdoor high brightness and optical bonding features.

Specifications:

Basic
Front Panel	Magnesium-aluminum alloy, anodized treatment
Rear Panel	SGCC Plate sheet, sand-blasting

Control Button	OSD button on top of backside
Signal Input	1 VGA, 1 DVI
Mount Method	Panel mount, VESA 75/100
Overall Dimension	259.0 * 177.0 * 46.0 (mm)
Cut-out Dimension	253 * 171 (mm)
Net Weight	2.4KG
IP Rate	Front Surface IP65 water-proof/Dust-proof
LCD Display
Size/Type	10.1” TFT LCD Display
Resolution	1280 * 800 (WXGA)

Brightness	350 nits
Contrast Ratio	800:1
Backlit & Lifetime	LED Backlit & 30K hours
Display Area	216.96 * 135.6 (mm)
View Angle	85/85/85/85
Touchscreen
Type	Projected capacitve touchscreen
Touch points	Mul& points touch, max. up to 10 points

Durability	>100 000 000 times
Surface Hardness	MOHS 6H
Touch Controller	EETI
Touch Interface	USB touch (Optional RS232 touch interface)
Special Treatment	An&-Fingerprint (AF)

Features:

Modular designed, aluminum-magnesium alloy, anodized treated;
10.1” TFT LCD Display, LED Backlit, WXGA 1280*800;
Multi up to 10 points Pcap. touchscreen, EETI controller;
USB touch interface, optional RS232 touch interface;
DC 12V power input, optional wide DC 9 ~36v input;
Dual signal inputs: 1 VGA, 1 DVI;
Panel mount, VESA 75/100 mount, Front IP65 rated protection
Optional outdoor high brightness and optical bonding features.

Specifications:

Basic
Front Panel	Magnesium-aluminum alloy, anodized treatment
Rear Panel	SGCC Plate sheet, sand-blasting

Control Button	OSD button on top of backside
Signal Input	1 VGA, 1 DVI
Mount Method	Panel mount, VESA 75/100
Overall Dimension	259.0 * 177.0 * 46.0 (mm)
Cut-out Dimension	253 * 171 (mm)
Net Weight	2.4KG
IP Rate	Front Surface IP65 water-proof/Dust-proof
LCD Display
Size/Type	10.1” TFT LCD Display
Resolution	1280 * 800 (WXGA)

Brightness	350 nits
Contrast Ratio	800:1
Backlit & Lifetime	LED Backlit & 30K hours
Display Area	216.96 * 135.6 (mm)
View Angle	85/85/85/85
Touchscreen
Type	Projected capacitve touchscreen
Touch points	Mul& points touch, max. up to 10 points

Durability	>100 000 000 times
Surface Hardness	MOHS 6H
Touch Controller	EETI
Touch Interface	USB touch (Optional RS232 touch interface)
Special Treatment	An&-Fingerprint (AF)

Read less...

To contact ESIS about CyberVisuell 10.1” WXGA Industrial Touch Monitor CM-P101-CT use Get a quote.

CM-P101-CT _V3.2 _Datasheet(0.56MB)
