CyberVisuell - Industrial Fan-less Box PC Intel Core i5 TBOX-13D20 Price Guide: $3,424

Supplier: ESIS

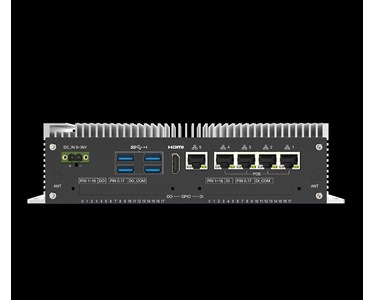

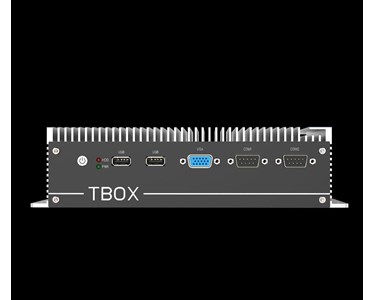

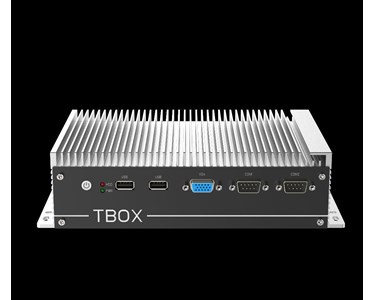

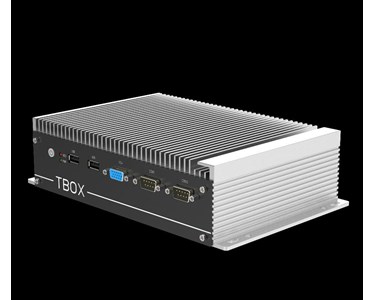

Industrial Fan-less Box PC Intel Core i5 TBOX-13D20

PoE Embedded PC With Intel 12th Gen.Core i5-1235U, 5x 2.5GbE (4 PoE), 6 U SB, 2 COM, VGA, HDMI.

Industrial Grade Reliability

Receive 1-2 weeks from order

Features:

Rugged & compact, fanless designed box structure;
Intel 12th Gen. Alder Lake -U, Core i5-1235U CPU processor;
Dual DDR5 memory, up to 64GB, 1* M.2 2280 storage slot;
Wide DC 9~36V power input ;
5x 2.5 GbE (4 support PoE functional), optional expansions;
4 USB3.1, 2 USB2.0, 1 HDMI, 1 VGA, 2 COM;
1 Mini-PCIe (Optional M.2 2230 E-Key) for wireless expansion;
Industrial operating -20 ~ +60? temp. range.

Specifications:

????

System
BIOS		SPI AMI EEI BIOS
CPU		Intel 12^th Gen. Core i5-1235U processor
CPU Ghz		10 (2P/8E) Cores, 12 Threads, 1.20Ghz
TDP		15W
Memory		SO-DIMM, DDR5-4800 Mhz, Dual slots, Max. up to 64GB
Storage		1* M.2 M-Key 2280 (PCIe 4 Gen.IV, NVMe) slot SSD, Optional support 1 2.5” SATA III SSD
Graphic		Intel Iris Xe Graphics eligible (Up to 80 EUs, 1.20Ghz)
Network		5* Intel I226V
Audio		N/A
Expansion		1* Full length Mini-PCIe (Default), or 1* M.2 2230 E-key
Watchdog		0 ~ 256 seconds programmable
Operating system		Win10, Win11, Linux
IO interface
Serial port		COM1: RS232; COM2: RS485
Ethernet		5* RJ45, 10/100/1000/2500 Mbps, LAN1~LAN4 support PoE 802.3AF
		(Single port max. up to 15.4W, total less than 45W);
USB		4* USB3.1, 2* USB2.0,
Display		1* HDMI, 1* VGA
Power input		1* 2 pin, phoenix terminal
GPIO		32* GPIO (16* DI, 16* DO, with isolated) [TBOX-13D20-GPIO model]
Structure
Box structure and surface		Aluminum alloy, anodizing and anti-scratch treatment
Color		Black + Silver
Mount method		Desktop, wall mount
Cooling system		Big Finned aluminum heatsinks, fanless design
Indicator & Button		Power switch, Power LED, HDD LED
Dimension		236.5 * 150.0 * 60.0 (mm)
Net weight		About 1.6 KG
Power & Environmental
Operating temp.		-20 ~ + 60 (?)
Storage temp.		-40 ~ + 70 (?)
Humidity		10 ~ 95% @ 10C (No condensation)
Vibration		50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock		10G/Peak (11 ms)
Power input		DC 9~36V
Certificate		CE/FCC/ROHS

Features:

Rugged & compact, fanless designed box structure;
Intel 12th Gen. Alder Lake -U, Core i5-1235U CPU processor;
Dual DDR5 memory, up to 64GB, 1* M.2 2280 storage slot;
Wide DC 9~36V power input ;
5x 2.5 GbE (4 support PoE functional), optional expansions;
4 USB3.1, 2 USB2.0, 1 HDMI, 1 VGA, 2 COM;
1 Mini-PCIe (Optional M.2 2230 E-Key) for wireless expansion;
Industrial operating -20 ~ +60? temp. range.

Specifications:

????

System
BIOS		SPI AMI EEI BIOS
CPU		Intel 12^th Gen. Core i5-1235U processor
CPU Ghz		10 (2P/8E) Cores, 12 Threads, 1.20Ghz
TDP		15W
Memory		SO-DIMM, DDR5-4800 Mhz, Dual slots, Max. up to 64GB
Storage		1* M.2 M-Key 2280 (PCIe 4 Gen.IV, NVMe) slot SSD, Optional support 1 2.5” SATA III SSD
Graphic		Intel Iris Xe Graphics eligible (Up to 80 EUs, 1.20Ghz)
Network		5* Intel I226V
Audio		N/A
Expansion		1* Full length Mini-PCIe (Default), or 1* M.2 2230 E-key
Watchdog		0 ~ 256 seconds programmable
Operating system		Win10, Win11, Linux
IO interface
Serial port		COM1: RS232; COM2: RS485
Ethernet		5* RJ45, 10/100/1000/2500 Mbps, LAN1~LAN4 support PoE 802.3AF
		(Single port max. up to 15.4W, total less than 45W);
USB		4* USB3.1, 2* USB2.0,
Display		1* HDMI, 1* VGA
Power input		1* 2 pin, phoenix terminal
GPIO		32* GPIO (16* DI, 16* DO, with isolated) [TBOX-13D20-GPIO model]
Structure
Box structure and surface		Aluminum alloy, anodizing and anti-scratch treatment
Color		Black + Silver
Mount method		Desktop, wall mount
Cooling system		Big Finned aluminum heatsinks, fanless design
Indicator & Button		Power switch, Power LED, HDD LED
Dimension		236.5 * 150.0 * 60.0 (mm)
Net weight		About 1.6 KG
Power & Environmental
Operating temp.		-20 ~ + 60 (?)
Storage temp.		-40 ~ + 70 (?)
Humidity		10 ~ 95% @ 10C (No condensation)
Vibration		50 ~ 500 Hz, 1.5G, 0.15mm peak to peak
Shock		10G/Peak (11 ms)
Power input		DC 9~36V
Certificate		CE/FCC/ROHS

Read less...

To contact ESIS about CyberVisuell Industrial Fan-less Box PC Intel Core i5 TBOX-13D20 use Get a quote.

TBOX-13D20 _V3.0 _Datasheet_241119(2.22MB)
